Huawei OptiXstar F200D-8P, GPON ONU, 8x POE
Your price incl. VAT (20.0%)
1,683.16 RON
❌ The item is not available. There is no option to order.
No confirmed delivery date
Product description

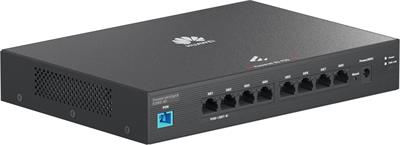

The Huawei F200D-8P is a bridge-type ONU unit designed for MiniFTTO installations. It features 1 GPON port (SC/UPC) and 8 10/100/1000M Ethernet ports with PoE support (802.3af/at) on all ports. It offers a total PoE budget of 120W. This ONU unit is suitable for enterprise network installations, where its optical uplink enables connectivity to remote parts of the network while providing PoE power for devices such as surveillance cameras or wireless access points.
Package Contents
- Device
- Power adapter 56V DC / 2.7A
Download
Technical parameters
LAN ports
Optical Connectors
(1) SC
Transmission speed
2.488 / 1.244 Gbps
Transfer type
GPON
Polishing type
UPC
LAN ports
8
LAN speed
(8) 10/100/1000Mbps
Max. LAN ports speed
1G
PON SFP cages
1
PoE-Out standards
802.3af, 802.3at
PoE Out ports
8
Receiver sensitivity [dBm]
-27
PoE budget [W]
120
Max. power consumption [W]
135
Power via connector/terminal
56V DC
Buttons
Reset
Operating temperature [°C]
-10 up to 55
Width [mm]
220
Height [mm]
35
Depth [mm]
150
