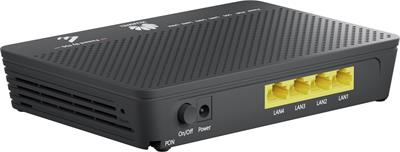

Huawei OptiXstar F100D-4G, GPON ONU
Your price incl. VAT (20.0%)
273.38 RON
❌ The item is not available. There is no option to order.
No confirmed delivery date
Product description
The Huawei OptiXstar F100D-4G is a bridging ONU. It uses the GPON technology to implement ultra-broadband access for users.
The high-performance forwarding capability effectively ensures data and HD video service experience, providing customers with an ideal all-optical access solution and future-oriented service support capability.
Package contents
- Device
- 12V / 1A DC power adapter
Download
Technical parameters
LAN ports
Optical Connectors
(1) SC
Transmission speed
2.488 / 1.244 Gbps
Transfer type
GPON
Polishing type
UPC
LAN ports
4
LAN speed
(4) 10/100/1000Mbps
Max. LAN ports speed
1G
PON SFP cages
1
Receiver sensitivity [dBm]
-27
Max. power consumption [W]
5
Power via connector/terminal
12V / 1A
Buttons
Reset
Operating temperature [°C]
0 up to 40
Width [mm]
168
Height [mm]
30
Depth [mm]
115
