MaxLink 8 ports switch 10/100 Mbps with 7 PoE ports - no power adapter
Planned Delivery Date by Courier to you 10-07-2024
Product description
MaxLink POES-8-7P-NOPS is highly versatile, highly compactible desktop unmanageable PoE switch. The switch has 8x 10/100Mbps ports whereas on seven ports you can use PoE Out function and thus connect/power any active element with the PoE support. The last port marked as "UP LINK" is used for possible whole switch powering (PoE In with overvoltage protection 1.25 A).
Installation options

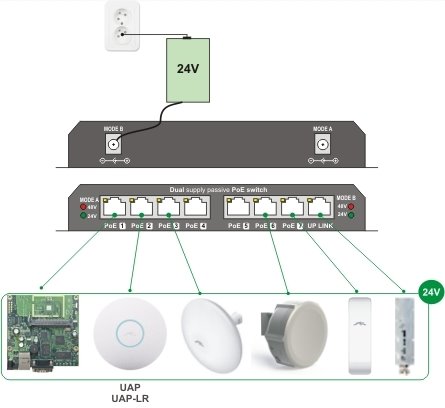

Mode B - using 24V power adapter - suitable for powering devices expecting power on the pins 4, 5 (+), 7, 8 (-), for example Ubiquity NanoBeam, NSM5, PowerBeam, MikroTik SXT, LHG etc.

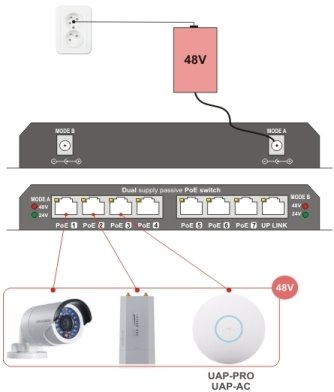

Mode A - using 48V power adapter - suitable for powering devices expecting power on the pins 1, 2, (+), 7, 8 (-), for example IP cameras, VoIP gateways, UAP-AC-PRO, UAP-AC-LR, UAP-AC-Lite etc.
Powering and overvoltage protection
When using powering mode A the maximum overvoltage protection on each PoE port is 650 mA. When using powering mode B the maximum overvoltage protection on each PoE port is 1 000 mA. The total current of all ports must not exceed 2.5 A. It is possible to use the power adapter in the range from 18 to 56 V DC for the both connecting type.
Package contains
- Device
