Teltonika PR1KC647, 5G combo MIMO mobile SMA antenna
Your price incl. VAT (20.0%)
503.57 RON
❌ The item is not available. There is no option to order.
No confirmed delivery date
Product description

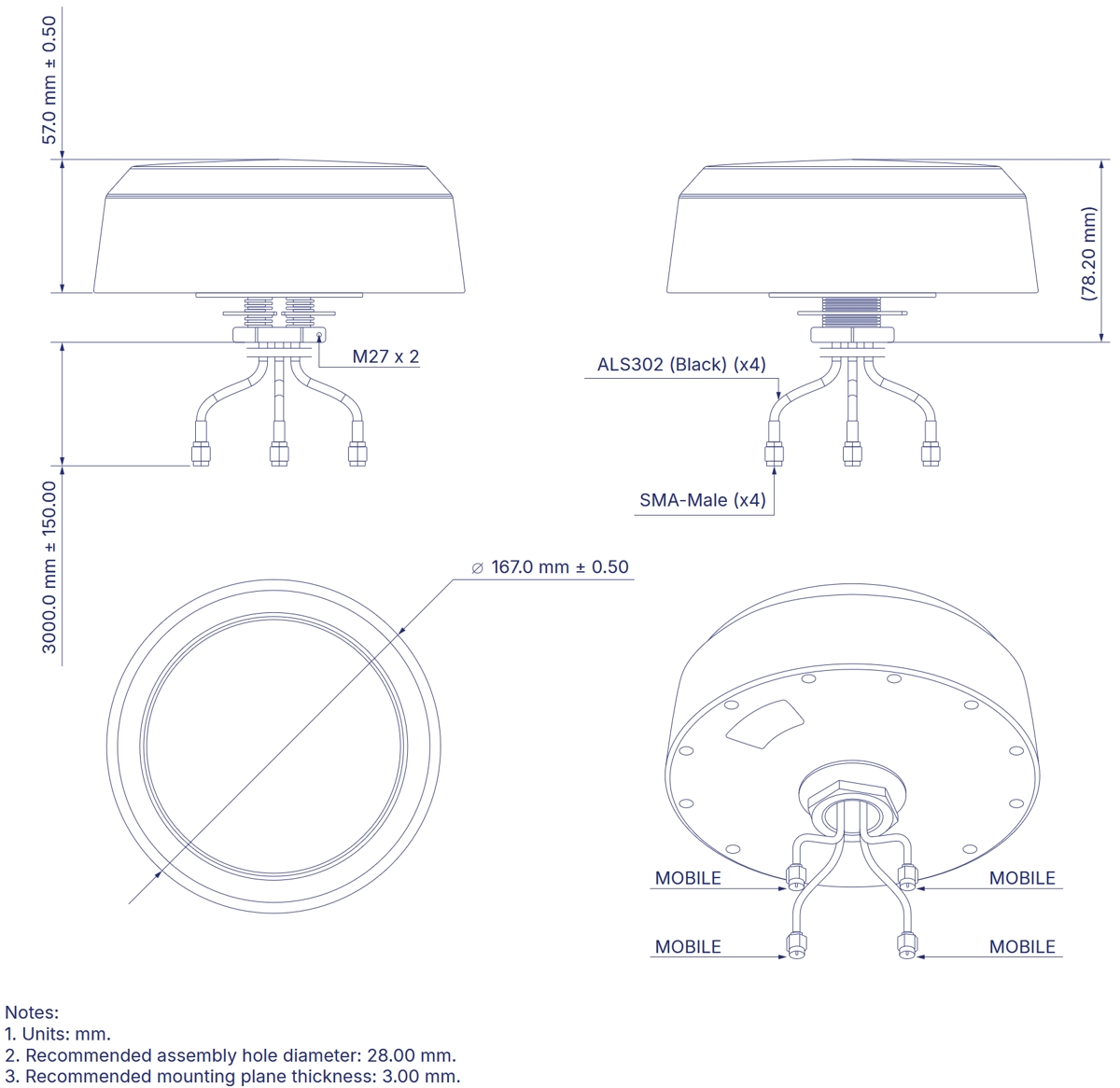

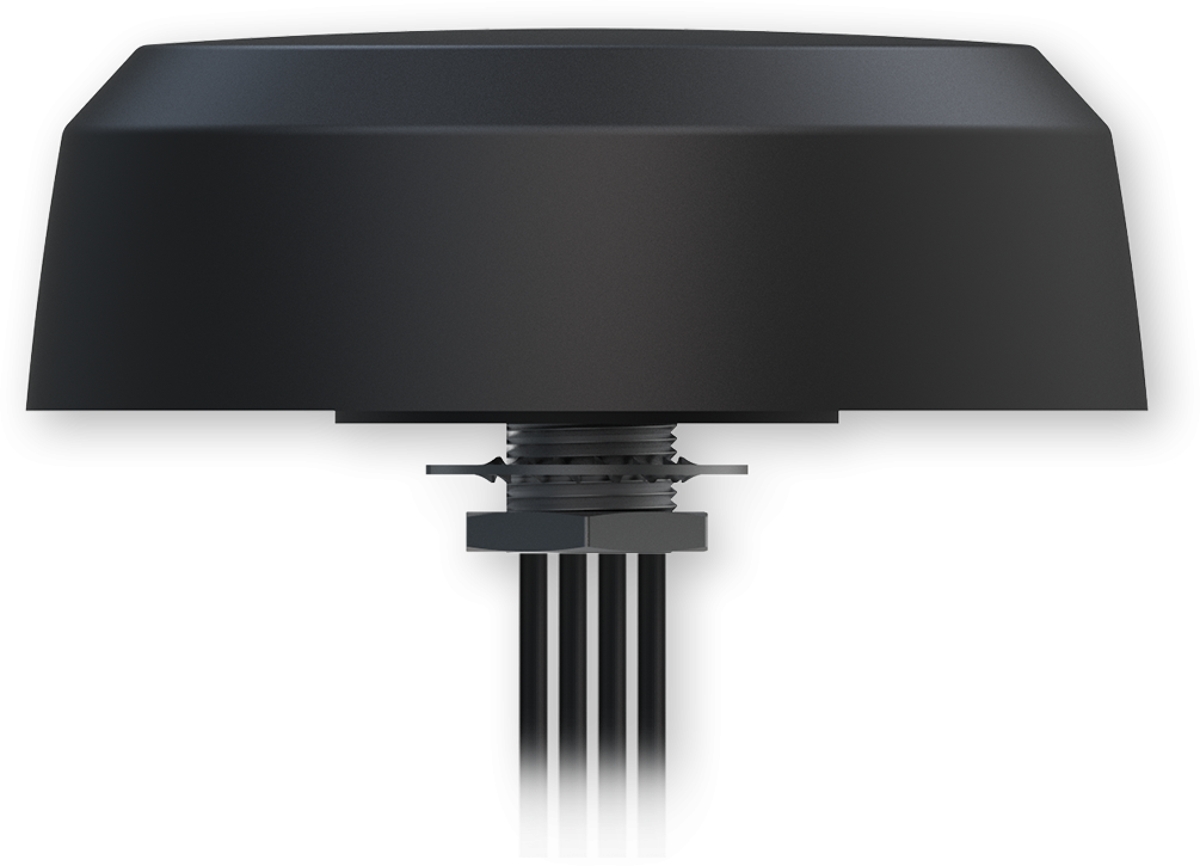

The Teltonika PR1KC647 is a 5G MIMO mobile antenna equipped with (4) SMA male connectors, designed for screw-mount installation on a roof.
Key features
- 5G frequencies: 600-960, 1400-6000 MHz
- 5G antenna gain: 4.7 dBi
- Protection rating: IP69K (after installation)
Download
Technical parameters
LAN ports
MIMO, SISO
4 x 4
RF cable length [m]
3
Polarization
VH
Cable type
ALS302
Protection class
IP69
Wireless frequency
LTE, 5G (GSM)
Antenna type
Omnidirectional
RF connectors

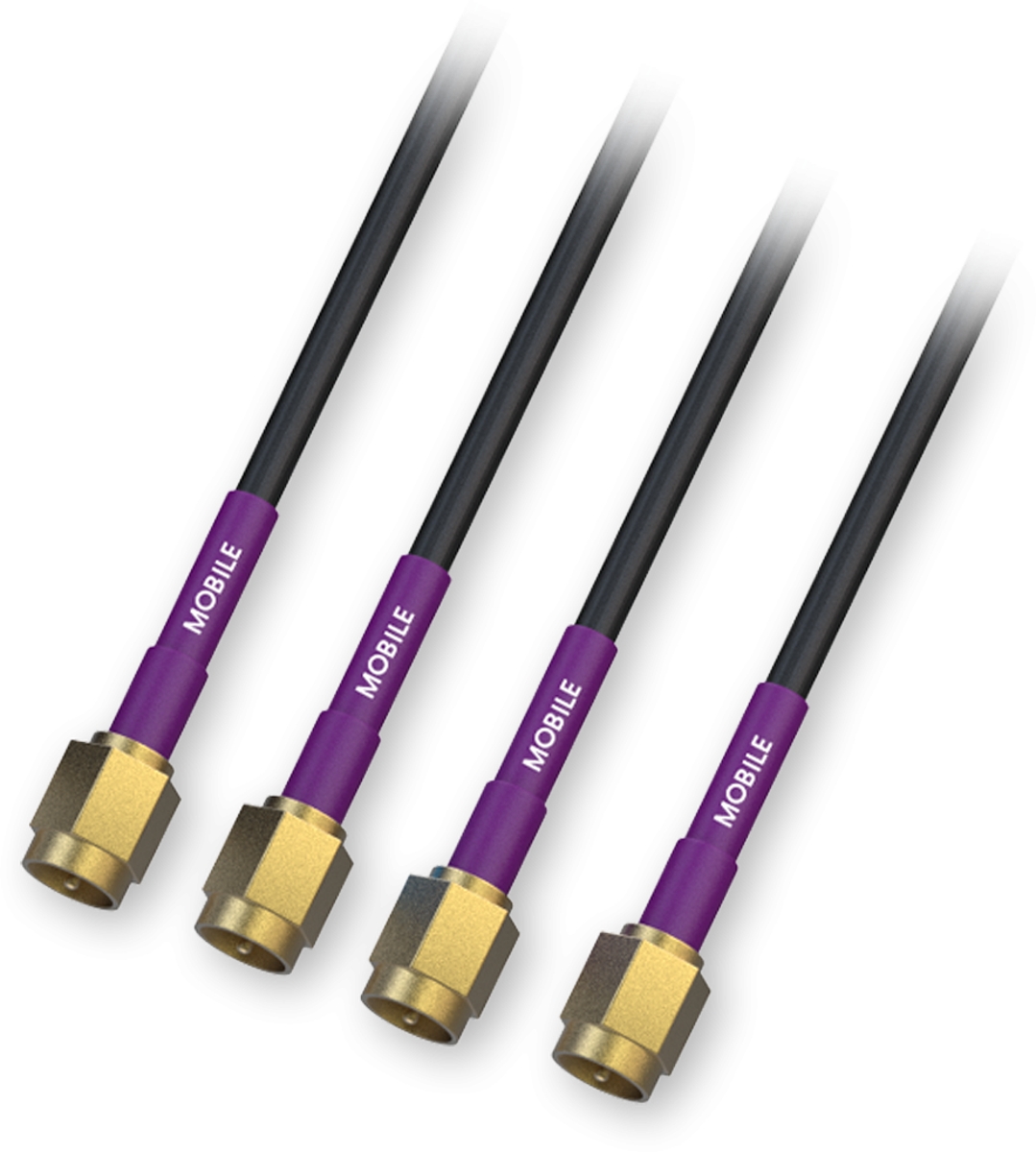

(4) SMA male
Purpose
Outdoor
Antenna gain [dBi]
4,7
Operating temperature [°C]
-40 up to 85
Weight [g]
701
Width [mm]
167
Height [mm]
57
Depth [mm]
167
