Cambium Networks cnMatrix MX-EX1010PXA-E PoE Switch - Bazar
New
used
Your price incl. VAT (20.0%)
1,462.14 RON
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 02-07-2025
Manufacturer
Product number
B-MX-EX1010PXA-E
Product Code
RL029.713
Warranty
12 months
You have a choice of 2 variants
Product description
The product is fully functional and used at the exhibition. It may not contain complete accessories or original packaging.

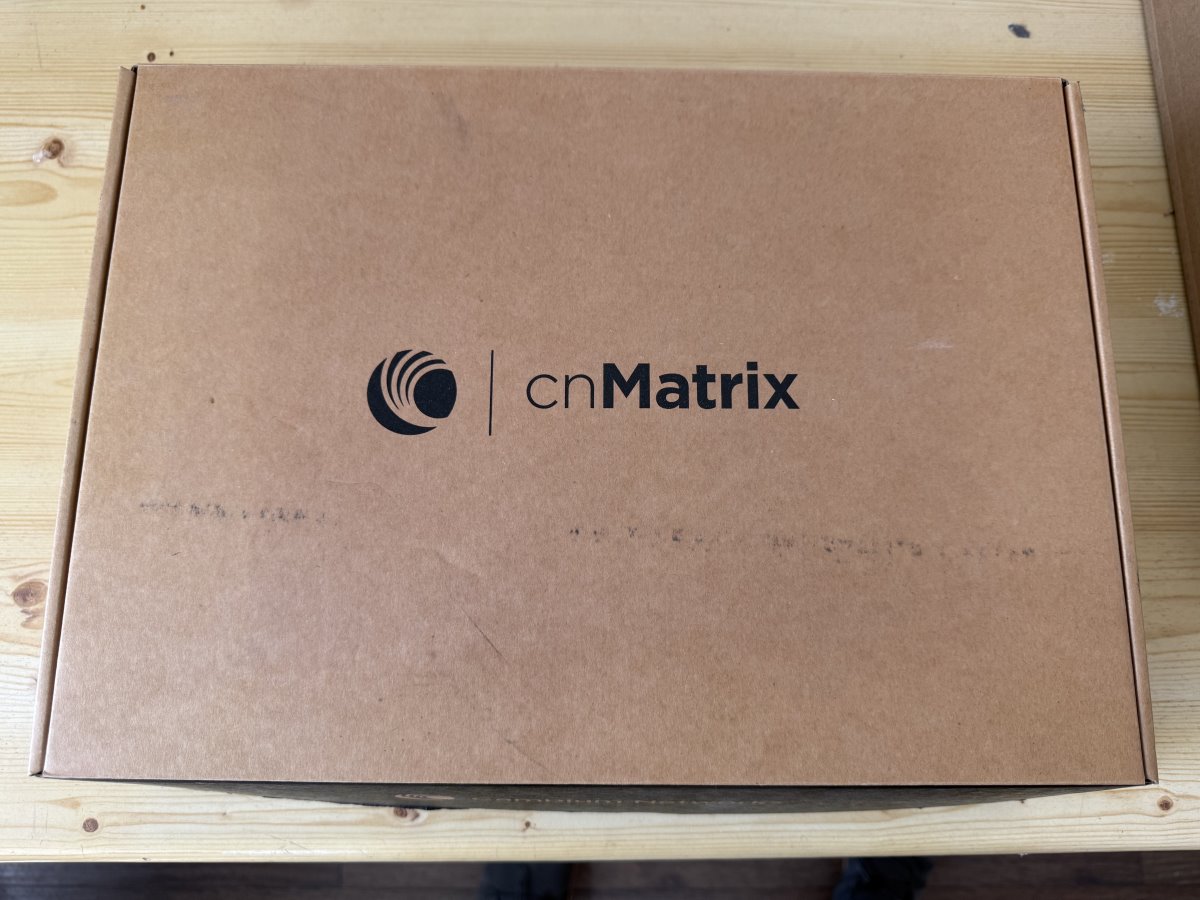

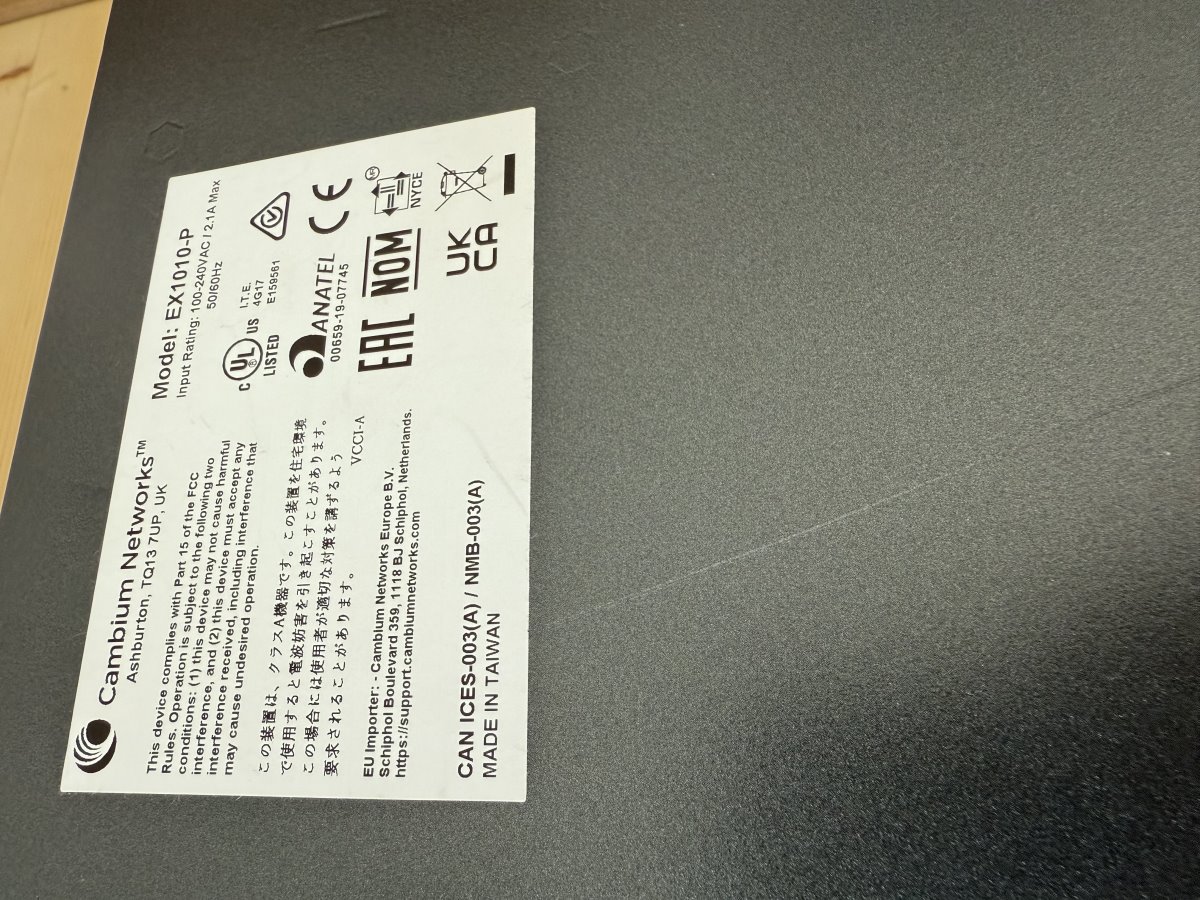

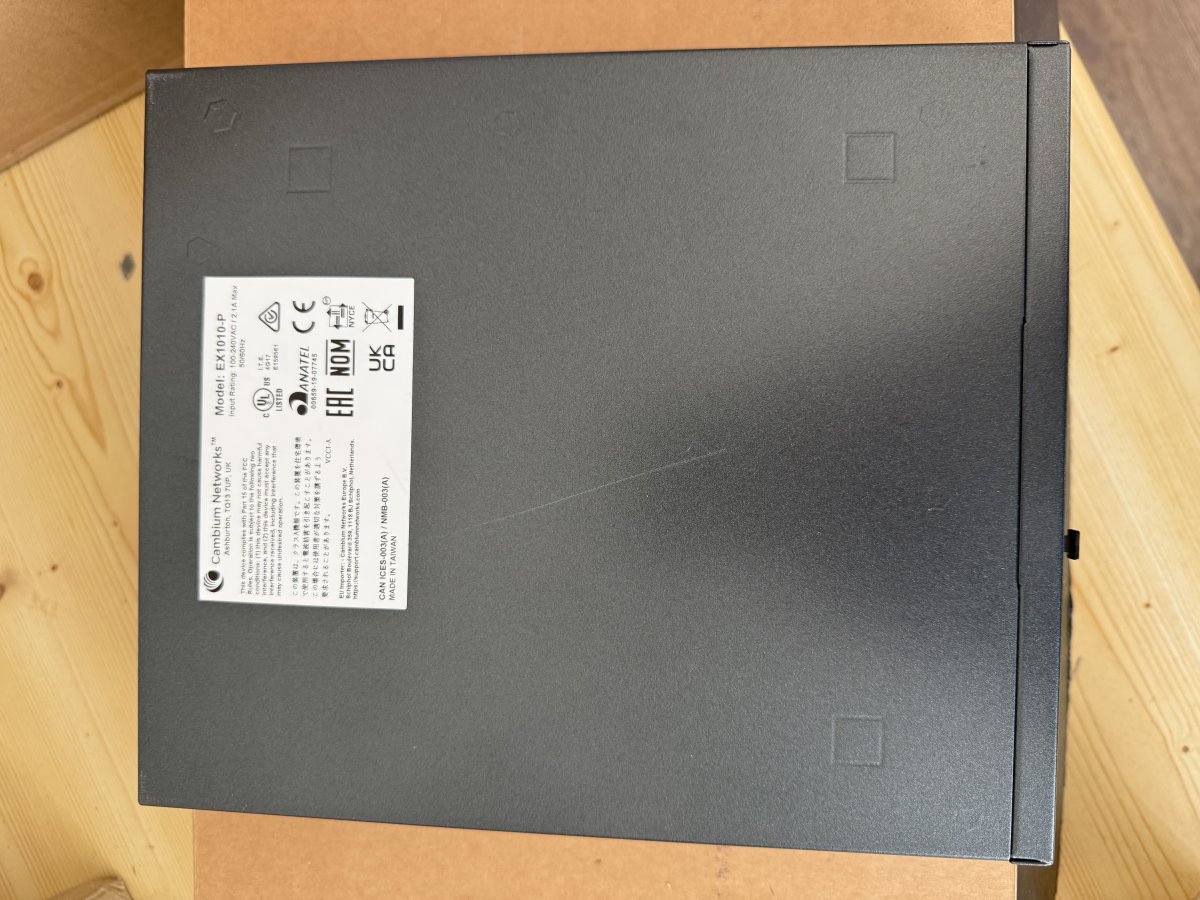

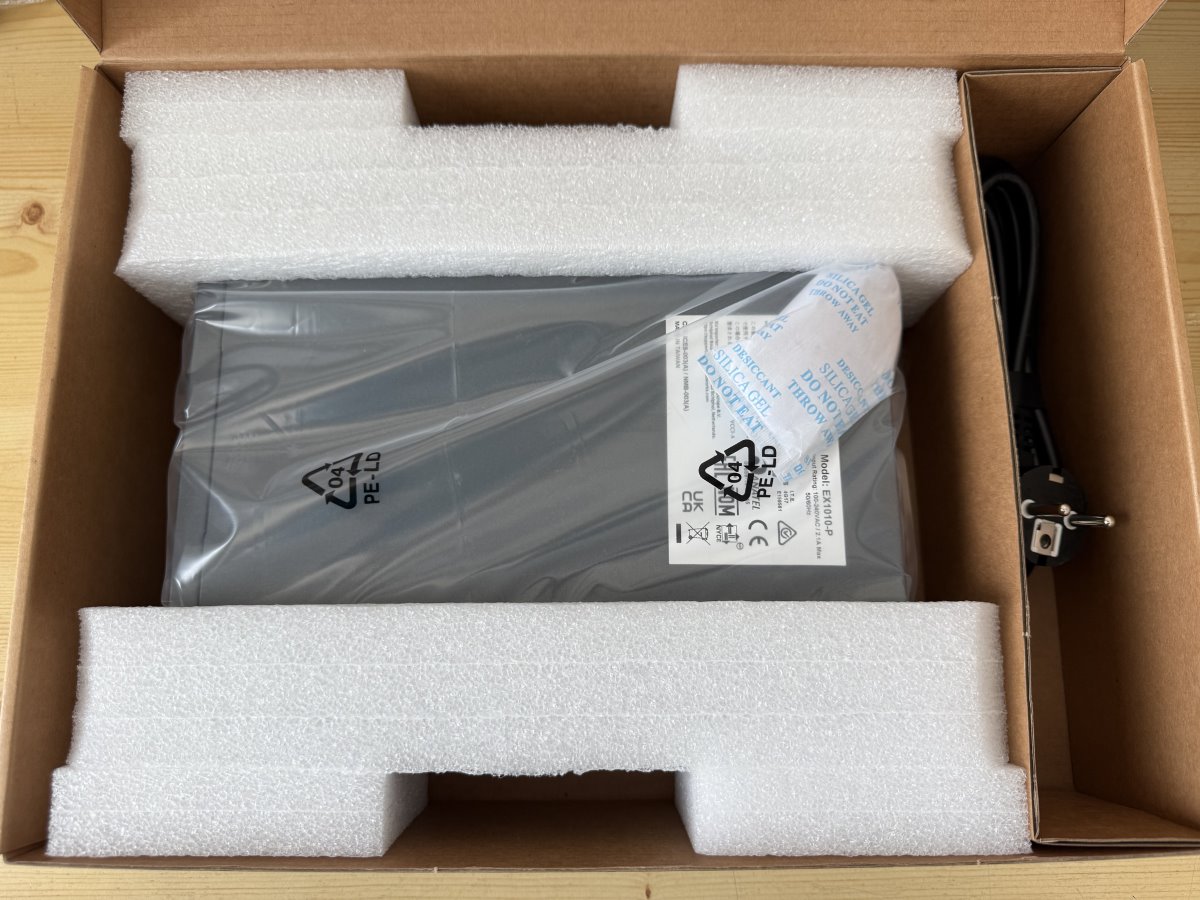

The package of product is complete including power cable. There is a scratch on the bottom side of device, please see attached photos in gallery.

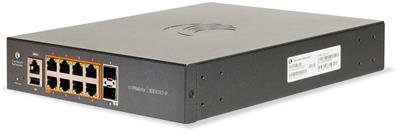

Gigabit L3 PoE switch Cambium Networks EX1010-P is equipped with 8 metal PoE+ 1G ports and 2x 1G SFP uplink ports. The switch has an RJ-45 console port. The power supply of the switch is solved by means of a built-in AC power supply and the PoE budget switch is 75 W. The switch is 1U high, half-width and only 250 mm deep. The switch is designed as a small access switch with PoE power supply.
Key Features
- Gigabit, manageable L2 PoE+ switch
- Main functionalities - Static route, Inter-VLAN Routing
- 1GE SFP+ uplink ports
- 10/100/1000 Mbps port with PoE+ support
- PoE power: 75 W
- Built AC power supply
- Forwarding performance: 120 Mbps
- Switching Capacity: 20 Gbit/s
- Memory (SDRAM): 512 MB
Package Contents
- (1) Switch
- Quick Start Guide
Download
Technical parameters
LAN ports
Design
Rackmount
Switchning capacity [Gbps]
20
MAC address table
16000
Jumbo frame [Bytes]
9000
Packet forwarding rate [Mpps]
120
Web management
Yes
Management
Web management, SSH, Telnet, Cambium cnMaestro cloud
Features
VLAN, QoS, DHCP snooping
Power type
Mains power (230V)
Fans
No
LAN ports
8
LAN speed
(8) 10/100/1000Mbps
Max. LAN ports speed
1G
PoE type
PoE-Out (only)
SFP cages
2
Optical interfaces
(2) 1000Mbps
PoE-Out standards
802.3af, 802.3at
PoE Out ports
8
PoE budget [W]
75
Max. power consumption [W]
11
Serial port
RJ45
Chassis design
Metal
USB ports 2.0
1
Power via connector/terminal
230V AC
Buttons
Reset
Operating temperature [°C]
0 up to 50
Width [mm]
210
Height [mm]
44
Depth [mm]
250
