Ubiquiti WaveFiber ONU
Your price incl. VAT (20.0%)
230.30 RON
Ordered for stock
Planned Delivery Date by Courier to you 12-11-2025
Product description

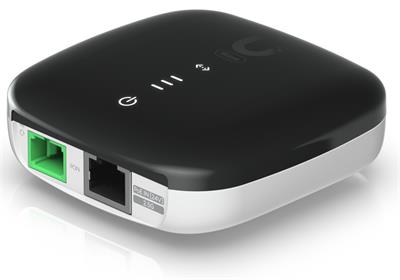

Modern, elegant industrial design, robust construction, and high performance – that’s the Wave-Fiber-ONU, a client unit for GPON solutions. The device functions as a converter from copper to fiber and supports both Bridge and Router modes. It features a 2.5G LAN port, which also provides power via 24V passive PoE. The unit’s maximum power consumption is 5W.
Device Status Information

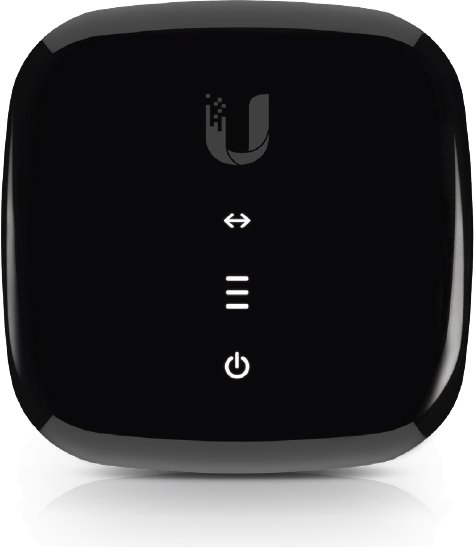

The unit is equipped with three status LEDs – Ethernet connection, received signal strength, and power indication.
GPON Technology

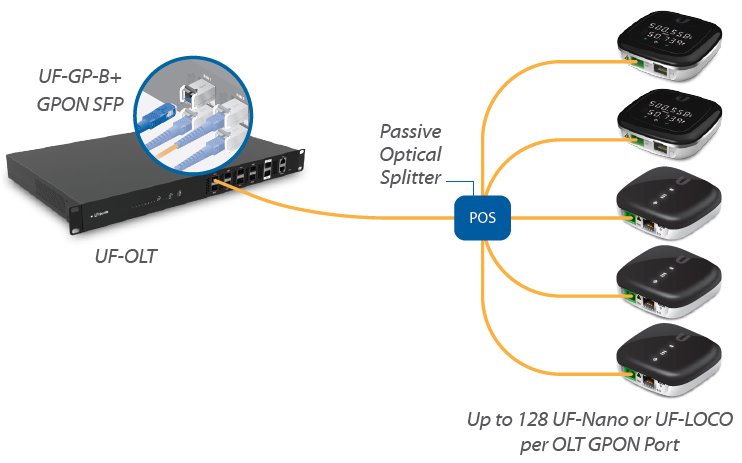

A single GPON port can support up to 128 CPE units at a distance of up to 20 km. The ONU unit is compatible with the UF-OLT and also with selected third-party OLT units – more information can be found here.
Package Contents
- Device
- Wall mount
- Screws + wall plugs
Download
Technical parameters
LAN ports
Tx power [dBm]
1.5 up to 5
Power over Ethernet
20 .. 28V DC
Optical Connectors
(1) SC
Transmission speed
2.488 / 1.244 Gbps
Wavelength - Tx/Rx [nm]
1310 / 1490
Distance [km]
20
Transfer type
GPON
Material
Polycarbonate
Polishing type
APC
LAN ports
1
LAN speed
(1) 100/1000/2500Mbps
Max. LAN ports speed
2.5G
Receiver sensitivity [dBm]
-8 up to -28
Max. power consumption [W]
5
Buttons
Reset
Operating temperature [°C]
-15 up to 45
Weight [g]
78
Width [mm]
77
Height [mm]
26
Depth [mm]
77
