RF elements Asymmetrical Horn Wideband Antenna 4x4 MIMO, RSMA, 5/6GHz, ??dBi, 60°

RF elements Asymmetrical Horn Wideband Antenna 4x4 MIMO, RSMA, 5/6GHz, ??dBi, 60°
Your price incl. VAT (20.0%)
2,877.13 RON
✅ In Stock < 10 Бр.
Delivery Planned Delivery Date by Courier to you 15-10-2025
RF elements
Manufacturer
Product number
AH60WB-4x4-SMA
Product Code
RL029.118
Warranty
24 months

Product description

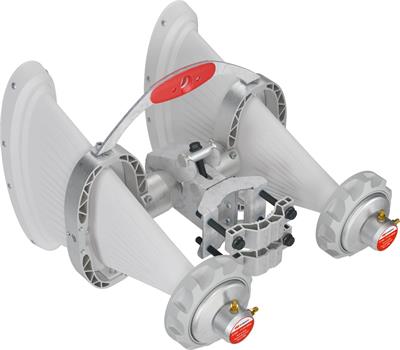

AH60WB-4x4-SMA is a 4x4 5 and 6 GHz horn sector antenna by RF elements, featuring a 60° asymmetrical radiation angle and a gain of 17dBi. This antenna offers a perfect combination of properties and features that address the main weaknesses of today's mainstream sector antennas. It is equipped with 4 RP-SMA female connectors for connection to any unit. The antenna can be easily mounted on a pole with a diameter of 40-80mm using an innovative bracket that simplifies installation by allowing the bracket to be pre-mounted and the antenna installed afterward.

AH60WB-4x4-SMA

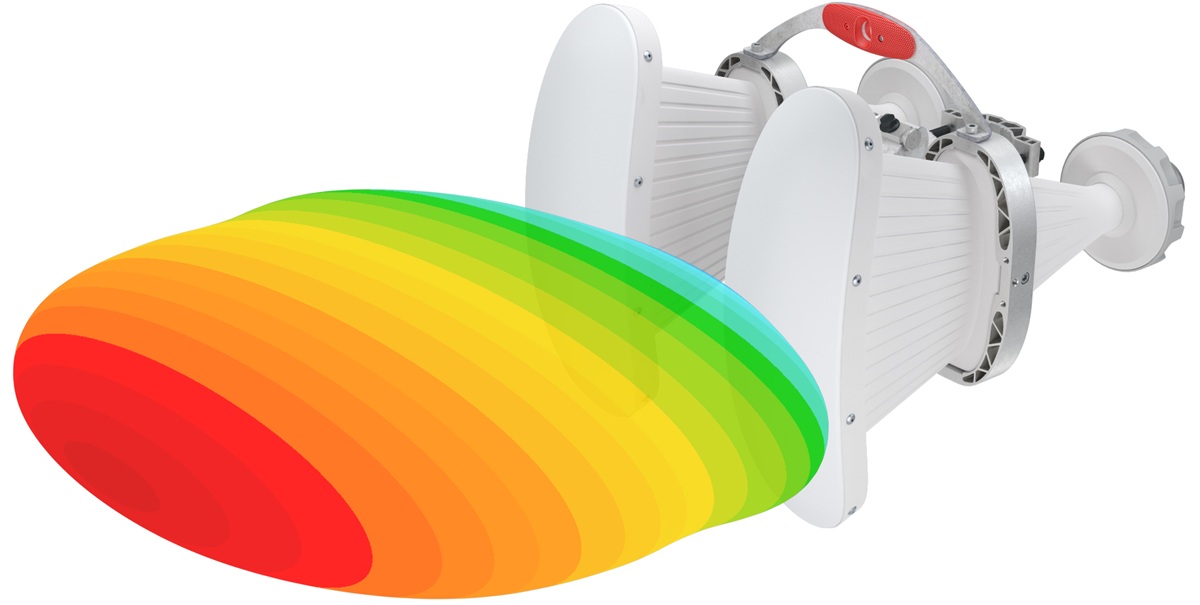

Coverage Without Dead Zones

The coverage of traditional sector antennas has a specific shape - if the AP is too high, clients located close to it suffer from poor signal quality. As the saying goes: "under the lamp, it is darkest." Asymmetrical sector antennas emit a signal with a flattened circular beam shape. As a result, the signal coverage of asymmetrical sector antennas is almost without dead zones, ensuring that even clients located close to the AP are satisfied.

AH60WB-4x4-SMA

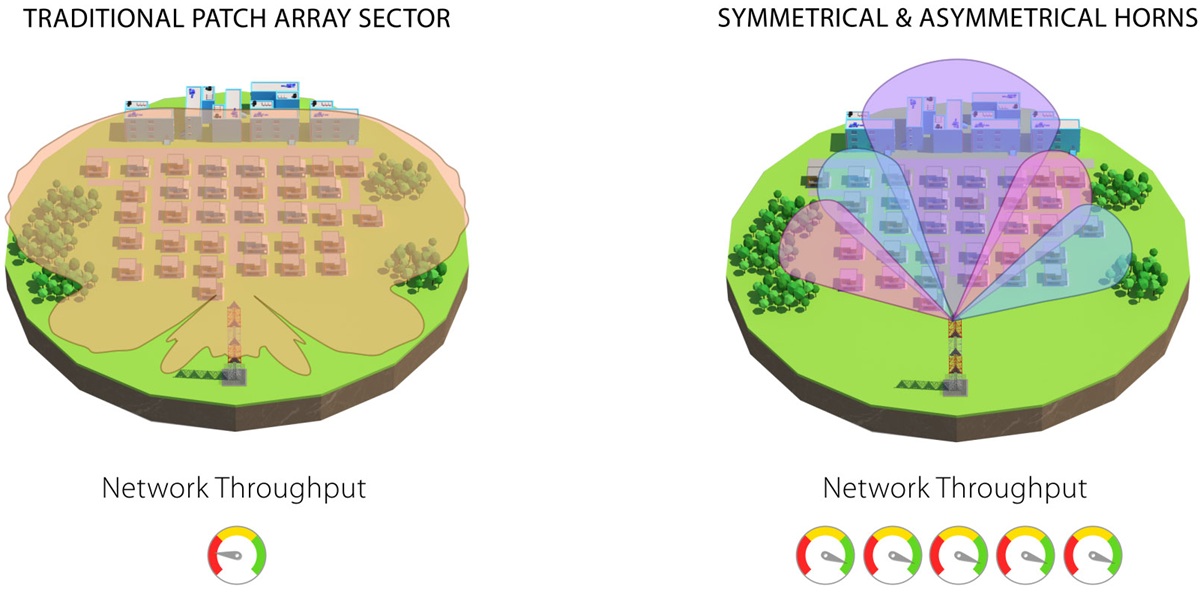

Excellent Scalability

The unique radiation characteristics, minimal side lobes, and extremely low back radiation allow for the placement of multiple antennas at one point or the creation of multiple independent points. This helps distribute the load across individual APs more effectively and increases speeds for individual clients.

AH60WB-4x4-SMA

Innovative Mount

The AHxx asymmetrical antennas are equipped with an innovative mounting system. The installation of the bracket and the antenna is separated and performed in two steps.

Package Contents

  • Antenna
  • Antenna bracket
  • (4) RP-SMA Male 750mm pigtail
  • (2) RP-SMA adapter
  • (2) Cambium Radio Bracket
  • Mimosa Radio Bracket
  • Pole Mount Brackets and screws

Download

https://download.discomp.cz/RFelements/Navody/UG-AH60WB-4x4-SMA-WEB3.pdf
Download User Guide
https://download.discomp.cz/RFelements\Datasheets\AH60WB.pdf
Download Datasheet

Technical parameters

LAN ports
MIMO, SISO
4 x 4
Polarization
Horizontal, V
VSWR
< 1,4
F/B ratio [dB]
27
Designed for mast diameter [mm]
40 up to 80
Wind load [km/h]
160
Protection class
IP65
Wireless frequency
5 GHz, 6 GHz
Elevation beam width (-6dB) [°]
25
Azimuth beam width (-6dB) [°]
60
Antenna type
Sector
RF connectors
TwistPort, (4) RSMA female
Purpose
Outdoor
Antenna gain [dBi]
17

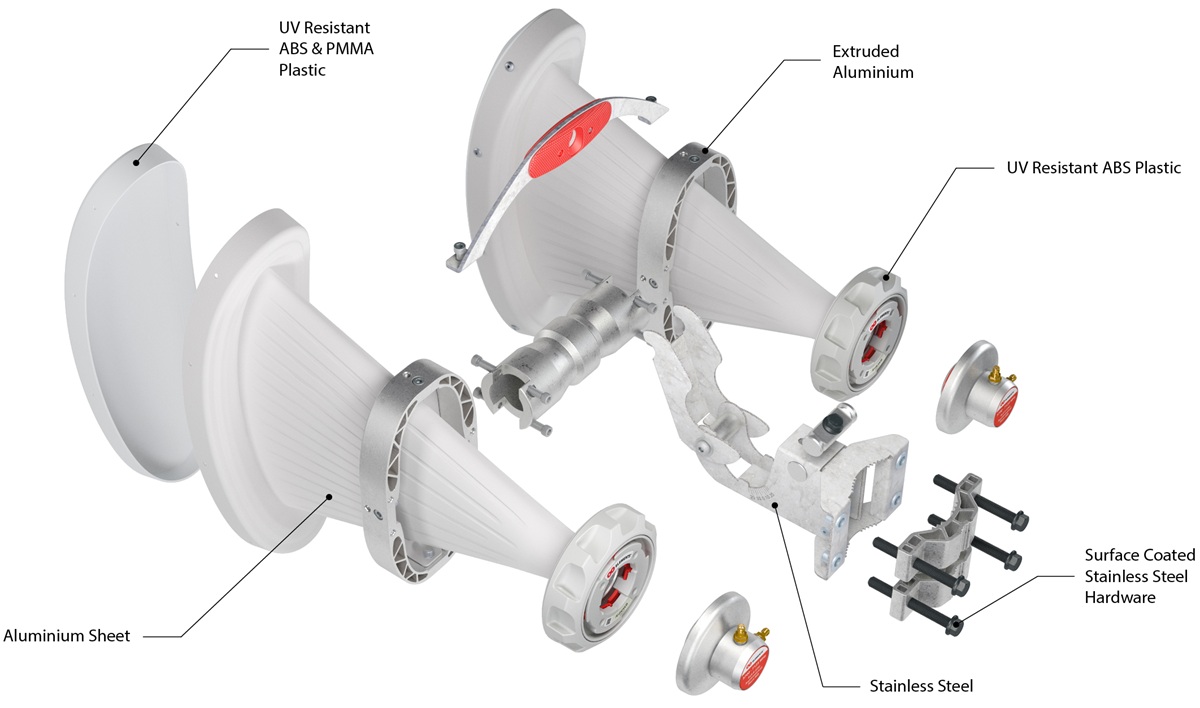

Material
Aluminum, Stainless steel, ABS plastic, Zinc alloy
Operating temperature [°C]
-35 up to 60
Weight [kg]
5,6
Width [mm]
492
Height [mm]
435
Depth [mm]
434
