Ubiquiti UCG-Fiber, UniFi Cloud Gateway Fiber

Ubiquiti UCG-Fiber, UniFi Cloud Gateway Fiber
Your price incl. VAT (20.0%)
1,352.93 RON
Ordered for stock
Delivery No confirmed delivery date
Ubiquiti
Manufacturer
Product number
UCG-Fiber
Product Code
RL029.105
Warranty
24 months

Product description

UCG-Fiber expands the range of compact UniFi Cloud Gateway series. The router features (1) WAN 10Gbps port, (2) 10Gbps SFP+ ports (1x WAN, 1x LAN), and (4) LAN 1/2.5Gbps ports, including one PoE-OUT port supporting PoE+ 802.3af/at. Its compact yet powerful design supports multi-WAN functionality, including load balancing, and also features IDS/IPS support. The router is equipped with various VPN types, including site-to-site VPN.

UCG-Fiber

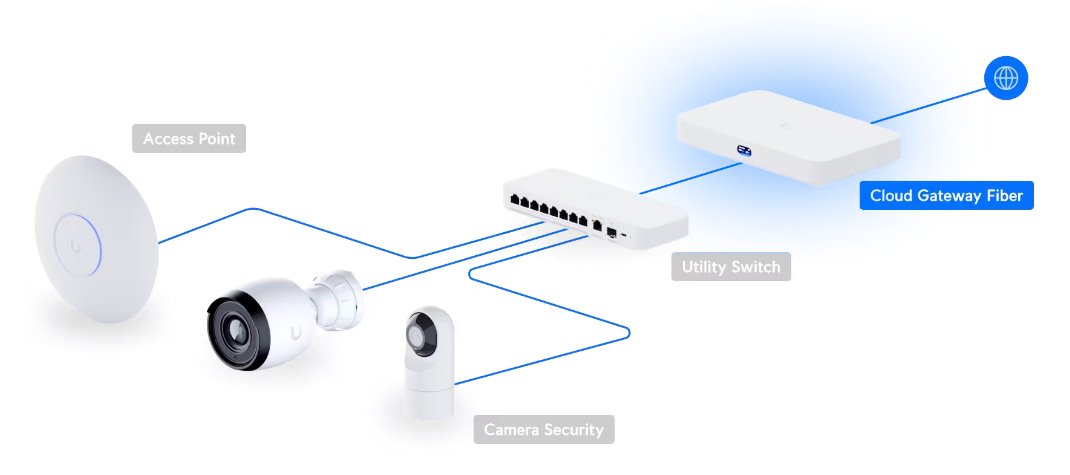

With the integrated UniFi Network application, you can manage 50+ UniFi devices and serve up to 500+ connected client devices. For video recording storage, the router can be expanded with an NVMe SSD of up to 2TB via a dedicated slot. It also includes a 0.96" status display. Power is supplied via a 54V/1.1A power adapter, which is included in the package.

Key Features

  • 5Gbps routing with IDS/IPS support
  • Supported UniFi applications: Network, Protect, Access, Talk, Connect
  • Multi-WAN + load balancing
  • 0.96" LCM display

Package Contents

  • Device
  • Patch cable
  • Power adapter 54V/1.1A

Download

https://dl.ui.com/qig/ucg-fiber/#index
Download Installation guide
https://techspecs.ui.com/unifi/unifi-cloud-gateways/ucg-fiber#datasheet
Download Datasheet

Technical parameters

LAN ports
WAN speed
(1) 1/2.5/10Gbps + (1) 10Gbps SFP+
Design
Desktop
Multiple WAN
Yes
Supported VPN
L2TP, IPSec, OpenVPN, WireGuard
Pre-installed controller
UniFi Network, UniFi Protect, UniFi Talk, UniFi Access, UniFi Connect
Management
UniFi Network
Power type
DC connector
LAN ports
5
LAN speed
(4) 10/100/1000/2500Mbps
Gigabit LAN
Yes
PoE type
PoE-Out (only)
SFP+ cages
2
Optical interfaces
(2) 10Gbps
PoE-Out standards
802.3af, 802.3at
PoE Out ports
1
Max. power consumption [W]
29
Chassis design
Plastic
Power via connector/terminal
54V / 1,1A
Buttons
Reset
Operating temperature [°C]
0 up to 40
Weight [g]
680
Width [mm]
213
Height [mm]
30
Depth [mm]
128
CPU
ARM Cortex-A73
CPU frequency [MHz]
2200
CPU cores
4
IPv6 support
Yes
