TP-Link LS108GP - 8-Port Gigabit PoE+ Switch

TP-Link LS108GP - 8-Port Gigabit PoE+ Switch
Your price incl. VAT (20.0%)
254.03 RON
Ordered for stock
Delivery No confirmed delivery date
TP-Link
Manufacturer
Product number
LS108GP
Product Code
RL028.784
Warranty
60 months

Product description

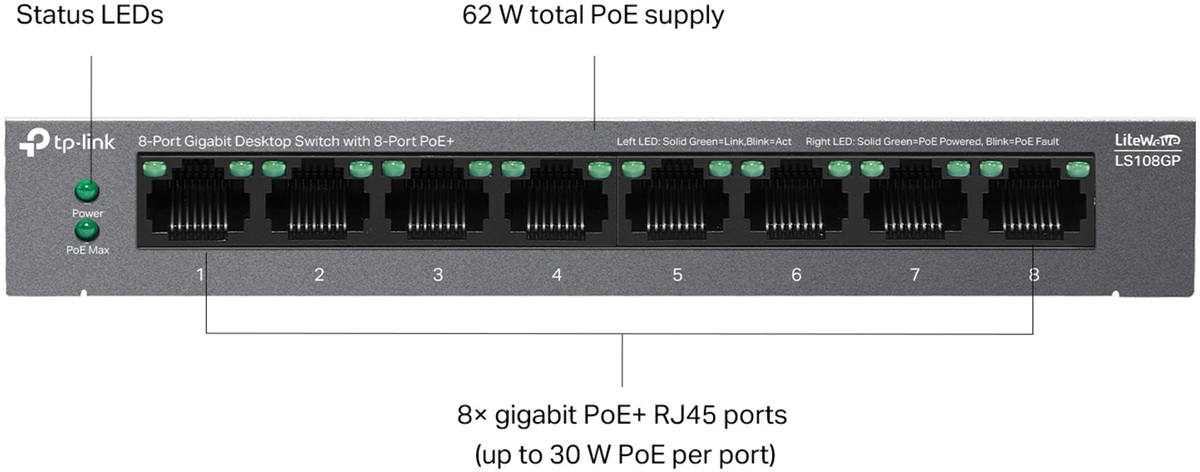

LS108GP is an unmanaged gigabit PoE switch with 8x 10/100/1000Mbps LAN ports. All ports support PoE 802.3af/at, providing up to 30W per port. The switch has a total PoE budget of 62W. It also supports PoE over a distance of up to 250m by enabling a special switch that reduces the link speed on PoE ports to 10Mbps, which is more than sufficient for transmitting camera footage. Another feature is PoE auto recovery, which automatically restarts unresponsive devices powered via PoE.

LS108GP

Key Features

  • 8x PoE-out 802.3af/at
  • Total PoE budget of 62W
  • Extended mode for distances up to 250m
  • PoE auto recovery automatically restarts unresponsive devices
LS108GP

Package Contents

  • Device
  • Power adapter 53.5V/1.31A

Download

https://download.discomp.cz/TP-LINK/Datasheets/LiteWave%20PoE%20Switches%20Datasheet.pdf
Download Datasheet
https://download.discomp.cz/TP-LINK/QSG/7106510517_LS1210GP(UN)1.0_IG.pdf
Download Installation Guide

Technical parameters

LAN ports
Design
Desktop
Switchning capacity [Gbps]
16
MAC address table
4000
Jumbo frame [Bytes]
16000
Packet forwarding rate [Mpps]
11,9
Power type
DC connector
Fans
No
LAN ports
8
LAN speed
(8) 10/100/1000Mbps
Max. LAN ports speed
1G
PoE type
PoE-Out (only)
PoE-Out standards
802.3af, 802.3at
PoE Out ports
8
PoE budget [W]
62
Long range PoE - up to 250m
Yes
Max. power consumption [W]
5,5
Chassis design
Metal
Power via connector/terminal
53,5V/1,31A
Operating temperature [°C]
0 up to 40
Width [mm]
158
Height [mm]
25
Depth [mm]
99
