RF elements Asymmetrical Horn Wideband Antenna, 6/5 GHz, 15dBi, 90°
Your price incl. VAT (20.0%)
2,126.75 RON
❌ The item is not available. There is no option to order.
No confirmed delivery date
39.64 RON excl. VAT
Download
Technical parameters
LAN ports
Polarization
Horizontal, V
F/B ratio [dB]
27
Designed for mast diameter [mm]
40 up to 80
Wind load [km/h]
160
Protection class
IP65
Wireless frequency
5 GHz, 6 GHz

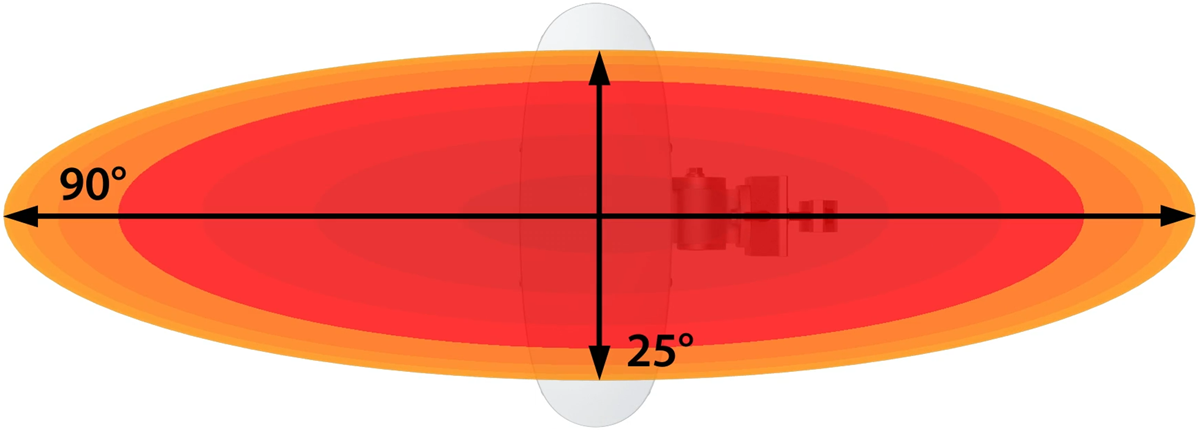

Elevation beam width (-6dB) [°]
25
Azimuth beam width (-6dB) [°]
90
Antenna type
Sector
RF connectors
TwistPort
Purpose
Outdoor
Antenna gain [dBi]
15

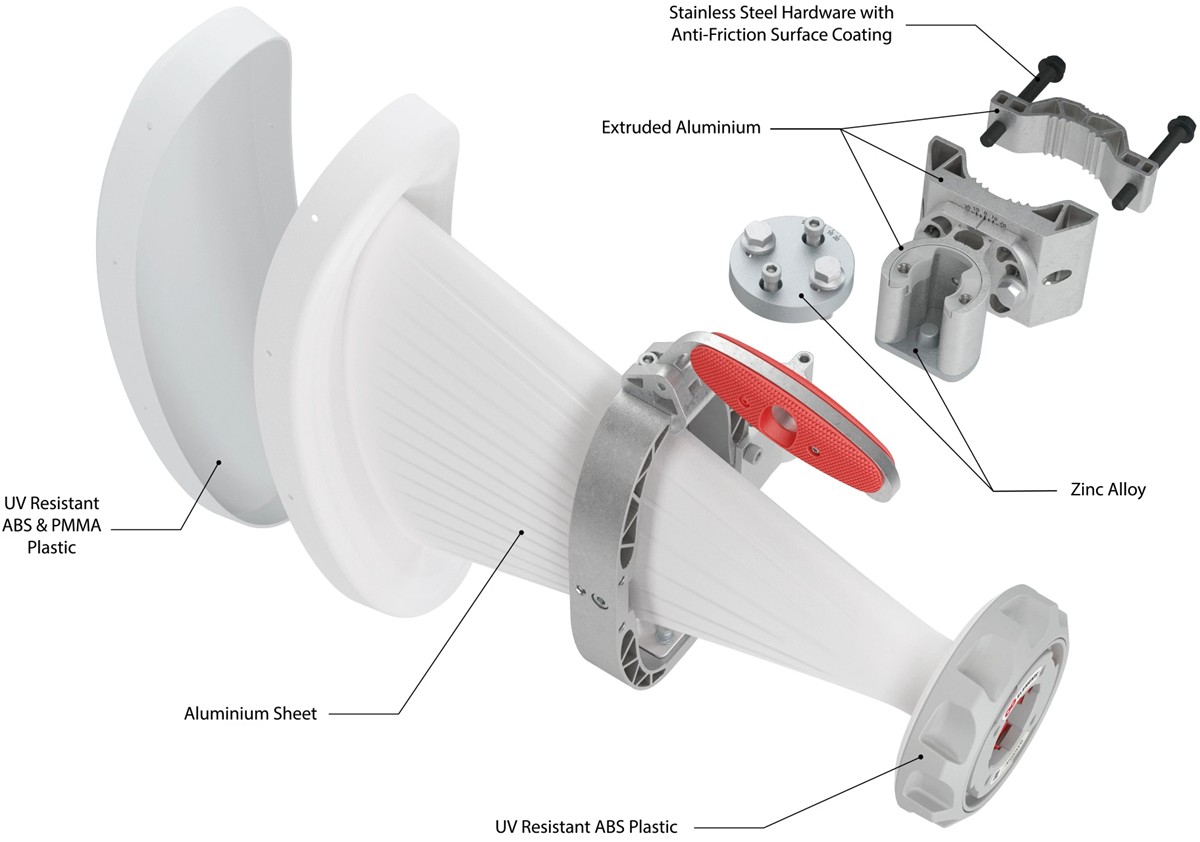

Material
Aluminum, Stainless steel, ABS plastic, Zinc alloy
Operating temperature [°C]
-35 up to 60
Weight [kg]
2,8
Width [mm]
513
Height [mm]
424
Depth [mm]
167
