Huawei AP266 - WiFi6 indoor Dual Band AP, smart antenna
No confirmed delivery date
Product description

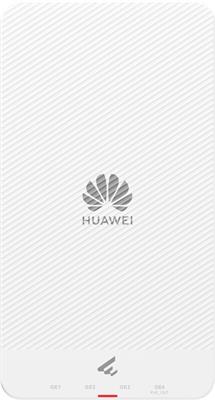

Huawei eKitEngine AP266 is a compact indoor access point (AP) designed according to the Wi-Fi 6 (802.11ax) standard, offering high-performance and reliable wireless connectivity with speeds of up to 2.975 Gbps. The AP supports simultaneous broadcasting on 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO) frequency bands. Max. number of access users is 128, Huawei's recommendation is up to 64. With its slim design and versatile installation options, it is suitable for various installations, such as hotels, hospitals, commercial spaces, or schools.

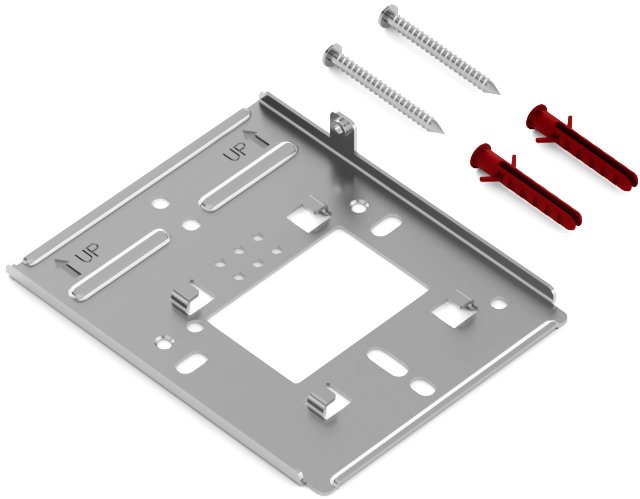

The access point is equipped with one Gigabit uplink port and four Gigabit downlink ports, one of which supports PoE OUT with max. output power of 15 W. For using of PoE-OUT, an 802.3at/bt input is required. It can be installed on a desk, wall, ceiling, or junction box, ensuring flexible deployment in different scenarios. Thanks to its small size and easy installation, it is ideal for indoor coverage in environments where a network infrastructure needs to be built quickly and easily.
The AP266 supports management and maintenance through EasyWeb, local WAC controller, or remotely via the HUAWEI eKit App and SNC platform. This flexibility allows for easy deployment and efficient network management, simplifying the operation and maintenance of the entire system.
With MU-MIMO technology, the AP can transmit data to multiple users simultaneously, maximizing spectrum efficiency and improving performance in high-density user environments. Supporting a bandwidth of 160 MHz and 1024-QAM modulation, the AP achieves speeds of up to 575 Mbps on the 2.4 GHz frequency and 2.4 Gbps on the 5 GHz frequency, ensuring fast and reliable connectivity.
Security features include advanced authentication and encryption methods, such as WPA3, WPA2, and 802.1X, ensuring maximum data protection in wireless networks.
