TP-Link DS-P7001-01 DeltaStream OLT, 1x GPON
Your price incl. VAT (20.0%)
3,621.84 RON
Ordered for stock
Planned Delivery Date by Courier to you 22-01-2025
You have a choice of 3 variants
1537.57 RON excl. VAT
31.90 RON excl. VAT
50.14 RON excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDMML-S+2733-10
67.05 RON excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDMML-S+3327-10
67.05 RON excl. VAT
Product description
DS-P7001-01 is a GPON OLT unit with one GPON port supporting up to 128 clients (ONT units) with physical links reaching distances of up to 60 km. It features 1x SFP+ and 1x 2.5 Gigabit Ethernet as uplink, 1 Gigabit Ethernet for management only and RJ45 console port. For flexibility of your deployment, the OLT supports both DC 12V/2,5A and 802.3at PoE power supplies

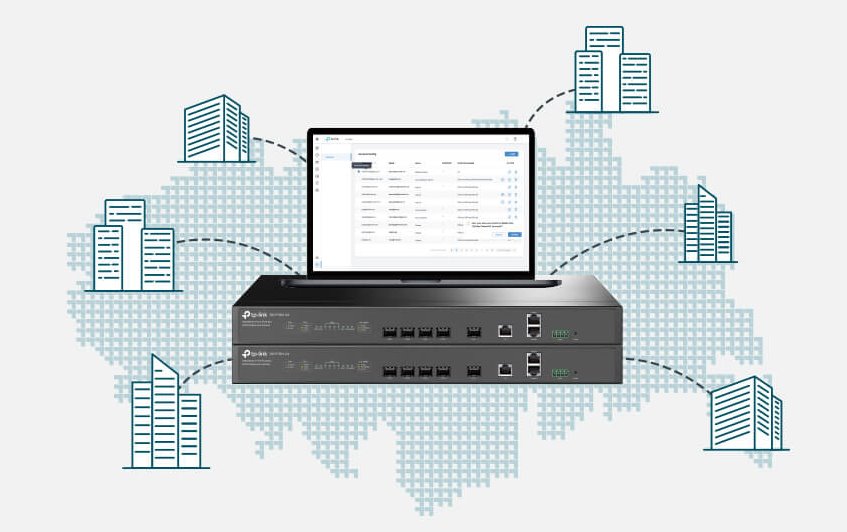

Centralized Management via DPMS
Centralized management is done through the DeltaStream PON Management System (DPMS). Easy maintenance and centralized management will make your life much easier. Configure and update all your devices at once using DeltaStream PON Management System (DPMS), SNMP, CLI, or the web-based user interface.
Package Contents
- Device
- Power adapter
- 19" rack mounts
Download
Technical parameters
LAN ports
Transfer type
GPON
LAN ports
1
LAN speed
(1) 100/1000/2500Mbps
SFP+ cages
1
PON SFP cages
1
Optical interfaces
(1) 10Gbps
Max. power consumption [W]
17
Serial port
RJ45
Power via connector/terminal
12V / 2,5A
Buttons
Reset
Operating temperature [°C]
0 up to 50
Depth [mm]
140
Width [mm]
294
Height [mm]
44
