Teltonika TRB246 Industrial IoT Gateway
Your price incl. VAT (20.0%)
676.02 RON
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 20-11-2024
Product description
The TRB246 is an industrial 4G LTE gateway equipped with I/Os, RS232, RS485, and Ethernet interfaces for IoT solutions requiring versatility and reliable M2M communication support. This gateway has dual SIM functionality and supports multiple protocols, like DNP3, DLMS, and Modbus, vital for ensuring smooth data transmission. Encased in aluminium housing, this industrial-grade IoT gateway can tolerate extreme environmental conditions in manufacturing, agriculture, or construction.
Package contents
- TRB246 Gateway

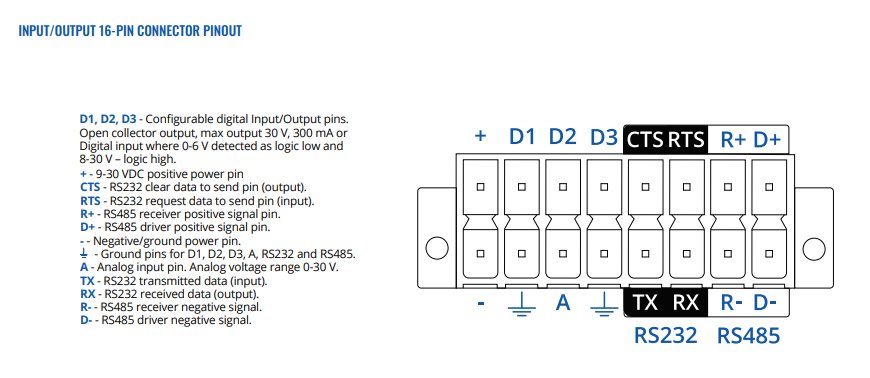

- 16-pin terminal block
- 1 x hex key
- QSG (Quick Start Guide)
- Packaging box
Download
Technical parameters
LAN ports
3G/4G support
Yes
Wireless frequency
LTE, 2G (GSM), 3G (GSM), 4G (GSM)
Power type
DC terminal
4G/LTE bands support
(1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (41) 2500 MHz, (28) 700 MHz
Operating system
RutOS (OpenWrt based Linux OS)
LAN ports
1
LAN speed
(1) 10/100Mbps
Max. power consumption [W]
3,5
Buttons
Reset
Operating temperature [°C]
-40 up to 75
Weight [g]
165
Width [mm]
83
Height [mm]
25
Depth [mm]
74
CPU
Mediatek, 580 Mhz, MIPS 24KEc
CPU frequency [MHz]
580
SIM slot
Yes
SIM slots quantity
2
Default IP address
192.168.2.1
Internal storage [MB]
128
RAM [MB]
16
Default login and password
admin / (preset password, see label/engraving)
GPS modul
Yes
