Teltonika TSW040 8-port PoE+ Switch

Teltonika TSW040 8-port PoE+ Switch
Your price incl. VAT (20.0%)
231.08 RON
✅ In Stock 10+ Бр.
Delivery Planned Delivery Date by Courier to you 04-12-2024
Teltonika
Manufacturer
Product number
TSW040000000
Product Code
RL027.675
Warranty
24 months

Product description

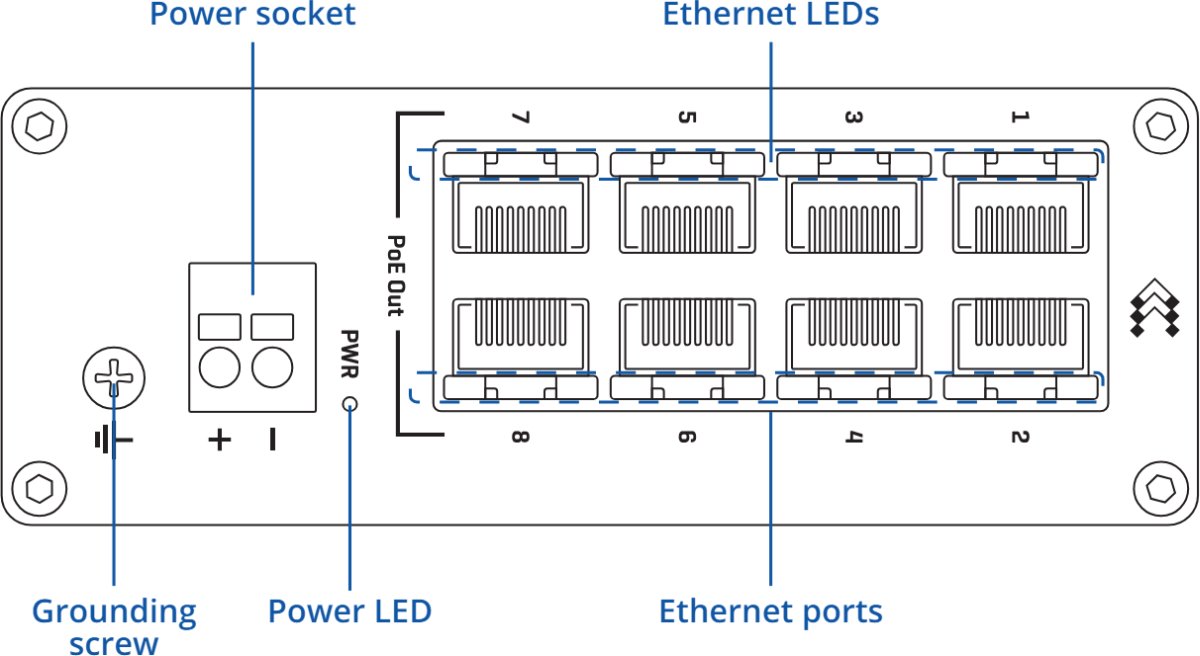

The TSW040 is an unmanaged 8-port PoE+ switch by Teltonika, featuring eight RJ45 ports with a total power budget of 240 W, or up to 30 W per port. This compact and rugged 8-port switch also features a 2-pin power input and an integrated DIN rail for easy mounting, making it ideal for industrial applications. The TSW040 has a wide voltage range of 7-57 VDC and a PoE-out voltage range of 44-57 VDC.

Teltonika TSW040

Note that TSW040 PoE ports works properly when switch is powered using PSU, which can supply 44-57 VDC. If TSW040 switch is powered with voltages ranging from 7 VDC to 43 VDC, it will work as standard switch, without PoE capabilities.

Package contents

  • Device
  • QSG (Quick Start Guide)
  • Packaging box

Download

https://download.discomp.cz/Teltonika/Datasheets/tsw040-datasheet-2024-v14.pdf
Download Datasheet
https://wiki.teltonika-networks.com/view/QSG_TSW040
Download Link to Quick Start Guide
https://wiki.teltonika-networks.com/view/TSW040_Manual
Download Link to User Manual

Technical parameters

LAN ports
Jumbo frame [Bytes]
9216
Design
Industry, DIN rail
MAC address table
2000
Power type
DC connector
LAN ports
8
LAN speed
(8) 10/100Mbps
Max. LAN ports speed
100M
PoE type
PoE-Out (only)
PoE-Out standards
802.3af, 802.3at
PoE Out ports
8
PoE budget [W]
240
Max. power consumption [W]
246
Chassis design
Metal
Power via connector/terminal
7 .. 57V DC
Operating temperature [°C]
-40 up to 75
Weight [g]
280
Depth [mm]
75
Width [mm]
113
Height [mm]
41
