TP-Link SX6632YF Omada 26-Port 10G Stackable L3 Managed Aggregation Switch
Your price incl. VAT (20.0%)
18,674.09 RON
❌ The item is not available. There is no option to order.
No confirmed delivery date
30.91 RON excl. VAT
48.66 RON excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDMML-S+2733-10
65.03 RON excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDMML-S+3327-10
65.03 RON excl. VAT
9625.23 RON excl. VAT
14812.43 RON excl. VAT
Product description
The Omada SX6632YF is a true L3 managed switch with full fiber ports that offers L3 routing, swift 25 Gbps wired speed, stacking, and redundant power supplies, catering to convergence layer demands. It comes with 6× 25 Gbps SFP28 slots, 26× 10 Gbps SFP+ slots, and physical stacking. Integrated with robust security and comprehensive management features, this switch ensures reliable performance for SMB, enterprise, and ISP networks. Up to 8 units of physical stacking with up to 6560 Gbps switching capacity empowers the networking structure with built-in redundancy and performance.
Key features

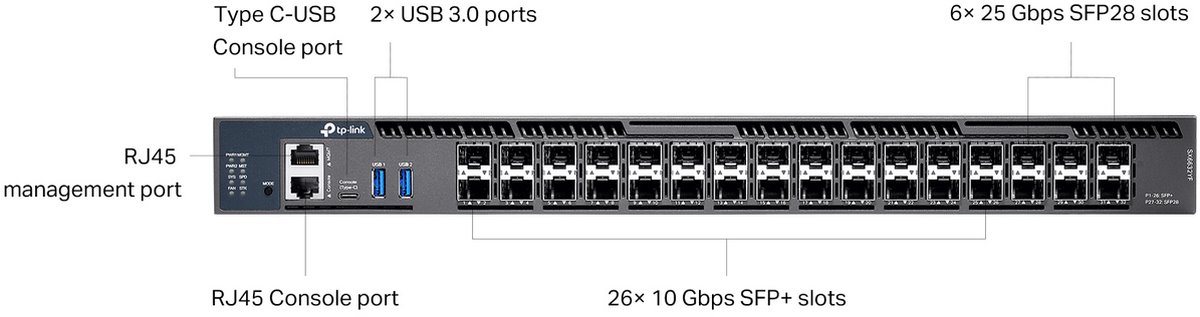

- 26× 10G SFP+ slots and 6× 25G SFP28 slots
- 820 Gbps switching capacity
- Physical Stacking for built-in redundancy and performance
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend and 802.1X
- Highly Available with two field-replaceable power supplies, VRRP and ERPS
- Centralized cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP and RMON
Package contents
- Device
- Power cord
- Quick Installation Guide
- Rackmount kit
- Rubber feet
Download
Technical parameters
LAN ports
Switchning capacity [Gbps]
820
Jumbo frame [Bytes]
9000
Design
Rackmount, Desktop
Web management
Yes
Management
Omada controller, Web management, SSH
Features
L3, VLAN, DHCP snooping
Power type
AC terminal
Fans
(4) 40 x 40 mm
SFP+ cages
26
SFP28 cages
6
Optical interfaces
(6) 10/25Gbps + (26) 10Gbps
PoE-Out standards
802.3af, 802.3at
Redundant power supply
Yes
Max. power consumption [W]
86
Chassis design
Metal
Serial port
USB-C, RJ45
Power via connector/terminal
230V AC
Operating temperature [°C]
-5 up to 40
Width [mm]
440
Height [mm]
44
Depth [mm]
380
Default IP address
Dynamic from DHCP
Default login and password
admin / admin
