Ubiquiti airFiber Dish 26dBi, 3GHz, Slant 45

Ubiquiti airFiber Dish 26dBi, 3GHz, Slant 45
Your price incl. VAT (20.0%)
1,296.90 RON
✅ In Stock < 10 Бр.
Delivery Planned Delivery Date by Courier to you 04-12-2024
Ubiquiti Networks
Manufacturer
Product number
AF-3G26-S45
Product Code
RL002.732
Warranty
24 months

Product description

The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings. AF-3G26-S45 offers 26dBi of gain in a 650-mm diameter size.

The airFiber X supports ± 45° slant polarization for improved noise immunity and Signal-to-Noise Ratio (SNR). The airFiber X antennas are purpose-built with 45° slant polarity for seamless integration with the airFiber X.

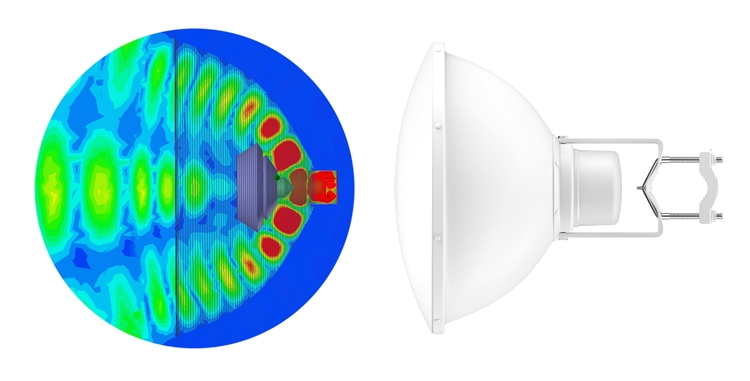

The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high-capacity, multipoint networks.



Package contains

  • Antenna
  • Protective shroud
  • (2) RSMA male - RSMA male pigtail
  • Mount bracket + screws

Download

https://download.discomp.cz/Ubiquiti/Datasheets/airFiber_Antennas_DS.pdf
Download Datasheet
https://download.discomp.cz/Ubiquiti/QSG/airFiber_AF-3G26-S45_QSG.pdf
Download Quick Start Guide

Technical parameters

LAN ports
MIMO, SISO
2 x 2 (slant - 45° turned)
Polarization
VH (slant)
Antenna design
Parabolic
VSWR
< 1,4
Cross-Pol Isolation [dB]
35
Wind load [km/h]
200
Rocket kit
Yes
Wireless frequency
3.5 GHz
Elevation beam width (-6dB) [°]
7
Azimuth beam width (-6dB) [°]
7
RF connectors
(2) RSMA female
Purpose
Outdoor
Antenna gain [dBi]
26
Weight [kg]
9,8
Width [mm]
650
Height [mm]
650
Depth [mm]
300
