Teltonika TRB256 Industrial NB-IoT Gateway
Your price incl. VAT (20.0%)
568.00 RON
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 20-11-2024
Product description
The TRB256 is an industrial 4G LTE NB-IoT gateway designed to be applied to a broad range of IoT solutions. The device is equipped with multiple WAN interfaces, such as I/Os, RS232, RS485, and an Ethernet port, additionally boasting dual SIM functionality for continuous connectivity. This industrial-grade gateway also supports the 450 MHz frequency band, offering superior LTE signal penetration compared to standard frequencies, making it an optimal choice for a diverse range of M2M applications.
Key Features
- CONNECTIVITY - 4G/LTE Cat M1/Cat NB1and NB2/EGPRS
- 450 MHZ BAND - Greater LTE signal penetration and increased connectivity coverage
- DUAL SIM - Auto-failover, backup WAN and more switching scenarios

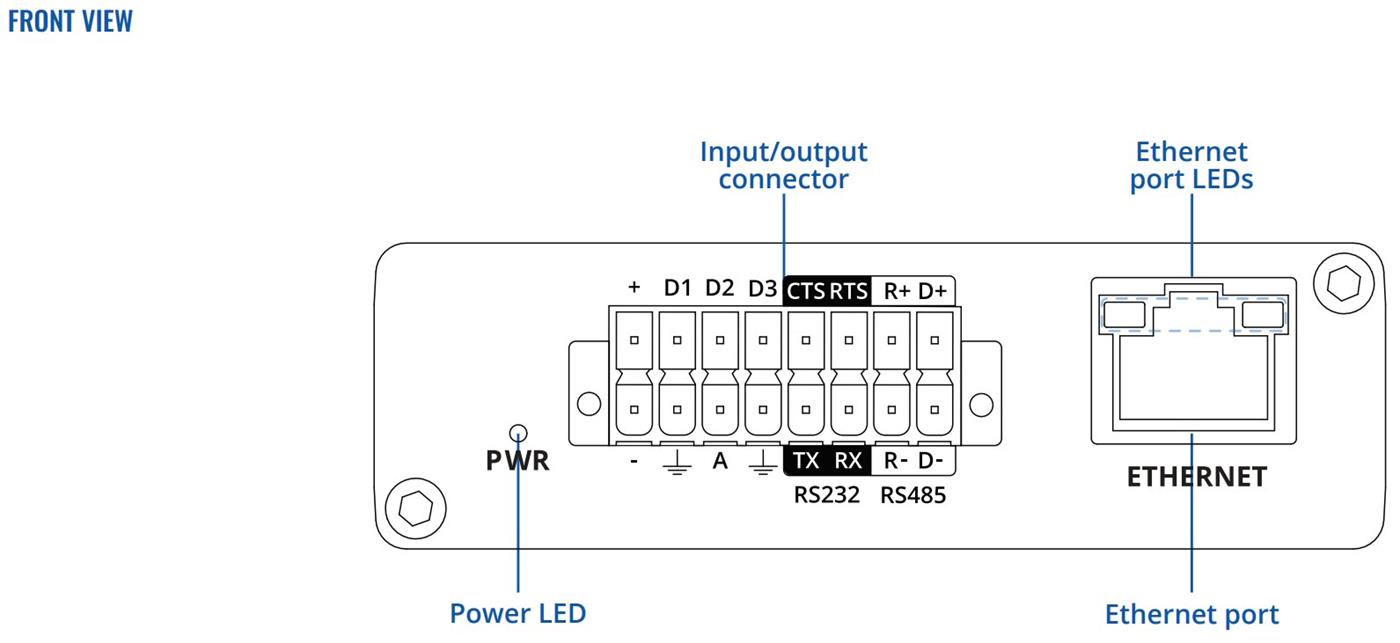

- INTERFACES - Ethernet, I/Os, and Serial (RS232, RS485) interfaces with 16-pin terminal block
Package Contents
- Device
- 16-pin terminal block
- 1 x hex key
- QSG (Quick Start Guide)
Download
Technical parameters
LAN ports
Wireless frequency
LTE, GNSS
RF connectors
(2) SMA female
Power type
DC terminal
Operating system
RutOS (OpenWrt based Linux OS)
LAN ports
1
LAN speed
(1) 10/100Mbps
Max. power consumption [W]
3,5
Serial port
RS-232, RS-485
Power via connector/terminal
9 .. 30V DC
Buttons
Reset
Operating temperature [°C]
-40 up to 75
Weight [g]
165
Height [mm]
25
Depth [mm]
74
Width [mm]
83
CPU
Mediatek, 580 Mhz, MIPS 24KEc
CPU frequency [MHz]
580
SIM slot
Yes
SIM slots quantity
2
Internal storage [MB]
128
Default IP address
192.168.2.1
RAM [MB]
16
Default login and password
admin / (preset password, see label/engraving)
GPS modul
Yes
