TP-Link EAP683 UR Omada AX6000 Ceiling Mount Dual-Band Wi-Fi 6 Access Point

TP-Link EAP683 UR Omada  AX6000 Ceiling Mount Dual-Band Wi-Fi 6 Access Point
Your price incl. VAT (20.0%)
895.86 RON
✅ In Stock < 10 Бр.
Delivery Planned Delivery Date by Courier to you 04-12-2024
TP-Link
Manufacturer
Product number
EAP683 UR
Product Code
RL026.758
Warranty
60 months

Product description

A well-equipped EAP series Access Point with Roaming, supporting Wi-Fi 6 technology, using a dual-band Wi-Fi network, easily reaching speeds of up to 4804 + 1148 Mbps thanks to 4x4 MU-MIMO technology in both bands. Sufficient bandwidth is ensured by a 2.5 Gbps LAN port with support for power supply via PoE and 12V DC jack. Of course, support for WPA3 encryption of wireless traffic, support for Beamforming, MU-MIMO, OFDMA, 160 MHz channels and Omada Mesh technologies.

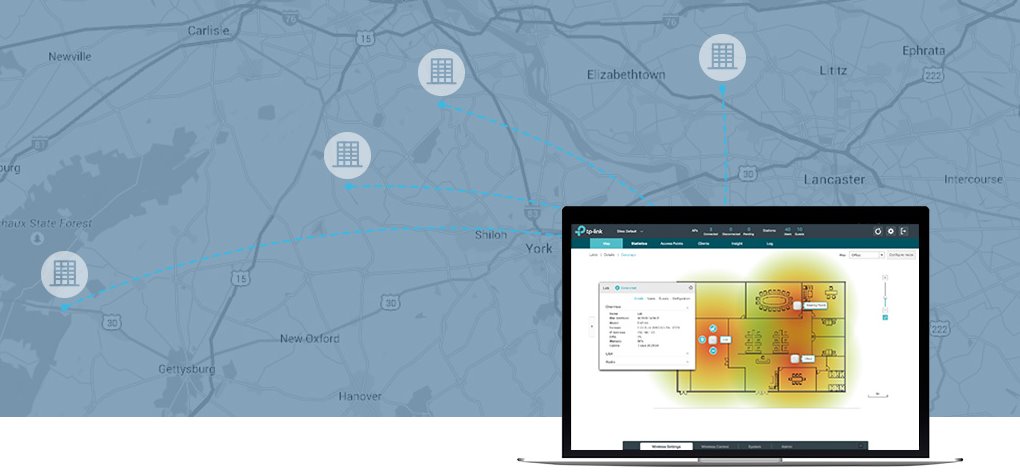

Easy for Centralized Management

Manage and monitor hundreds of EAPs with ease, all from a single location. The TP-Link Omada Controller software provides an intuitive management interface. Control and map out the entire network from any connected PC. There’s no added cost, and no need for special training. Business Wi-Fi management has never been so efficient and cost-effective.

TP-Link EAP683 UR

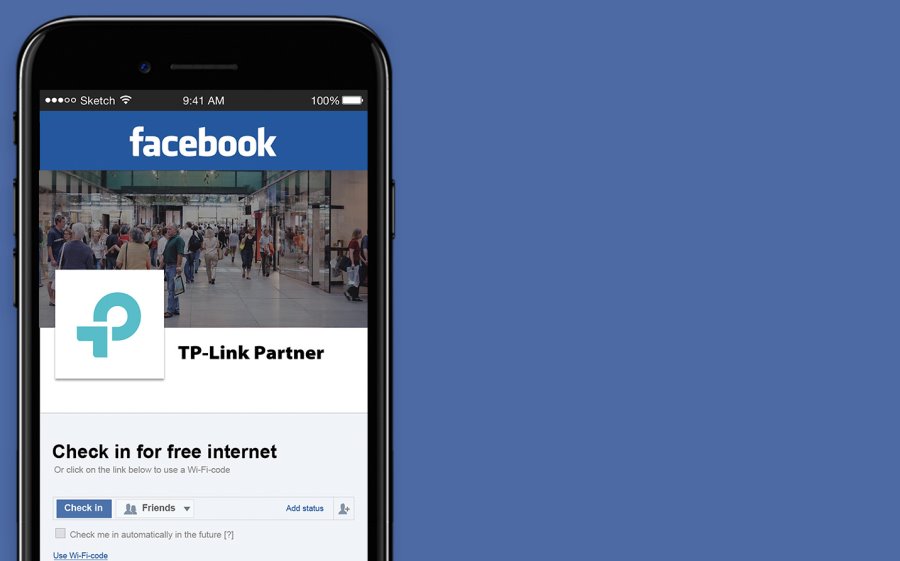

Efficient Guest Authentication with Facebook and SMS Support

Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

TP-Link EAP683 UR

Package contents

  • EAP683 UR unit
  • Ceiling mount
  • Mounting kit

Download

https://download.discomp.cz/TP-LINK/datasheets/EAP683_UR.pdf
Download Datasheet
https://download.discomp.cz/TP-LINK/Userguides/Omada EAP_UG.pdf
Download User manual

Technical parameters

LAN ports
Power over Ethernet
802.3at
Maximum modulation
1024 QAM
Operating mode
Access Point
Management
Web management, Omada controller
Wireless frequency
2.4 + 5 GHz (dual band)
WiFi standards
802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax
MU-MIMO
Yes
Transmission speed - 5GHz [Mb/s]
4804
Transmission speed - 2.4GHz [Mb/s]
1148
Tx power 2.4GHz [dBm]
20
Tx power 5GHz [dBm]
28
2.4GHz MIMO
4 x 4
5GHz MIMO
4 x 4
Type of antenna
Built-in
Internal antennas
4
Purpose
Indoor
Roaming
Yes
Antenna gain [dBi]
4, 5
LAN ports
1
LAN speed
(1) 100/1000/2500Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
21
Power via connector/terminal
12V / 2A
Buttons
Reset
Operating temperature [°C]
0 up to 40
Width [mm]
220
Height [mm]
33
Depth [mm]
220
IPv6 support
Yes
