TP-Link TL-SG3428X-UPS JetStream Switch with UPS

TP-Link TL-SG3428X-UPS JetStream Switch with UPS
Your price incl. VAT (20.0%)
1,527.58 RON
✅ In Stock < 10 Бр.
Delivery Planned Delivery Date by Courier to you 04-12-2024
TP-Link
Manufacturer
Product number
TL-SG3428X-UPS
Product Code
RL025.255
Warranty
60 months

Product description

TL-SG3428X-UPS provides 24x 10/100/1000 Mbps LAN ports. Additionally, 4x 10G SFP+ slots are also available. For management and monitoring, it is possible to use common access via web interface and protocols, e.g. CLI, SNMP, RMO, but also centralized cloud management and software controller. The hardware Omada controller (OC200/OC300) is also supported.

Compared to the classic version, in addition to the standard 230V AC power supply, this switch has UPS option, i.e. battery connection ( at least 4.5Ah) in case of failure of the primary 230V AC power supply including battery charging. The switch can also be connected by disconnecting the 230V AC and connecting the switch only to a 12V DC source on the terminals intended for the battery.

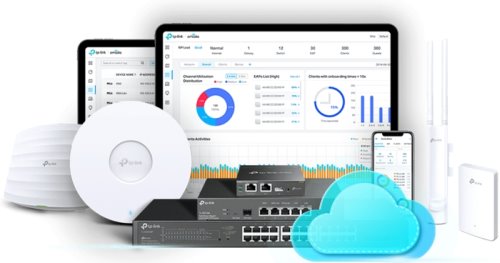

Omada Controller

The Omada Software Defined Networking (SDN) platform integrates network devices, including Access Points, Switches, Gateway routers and provides 100% centralized management in the cloud. Omada creates a highly scalable network including control from a single interface. Provides seamless wireless and wired connectivity, ideal for use in hospitality, education, retail, offices and more.

TP-Link TL-SG3428X-UPS

Package contents

  • Device
  • Power cord
  • Mounts for 19" rack

Download

https://download.discomp.cz/tp-link/datasheets/10-Gigabit_L2_Managed_Switch.pdf
Download Datasheet

Technical parameters

LAN ports
Design
Rackmount
Switchning capacity [Gbps]
128
MAC address table
16000
Jumbo frame [Bytes]
9000
Packet forwarding rate [Mpps]
95
Web management
Yes
Management
Web management, SSH, Telnet, Omada controller
Features
VLAN, QoS, DHCP snooping
Power type
Mains power (230V), Battery, DC terminal
Fans
No
LAN ports
24
LAN speed
(24) 10/100/1000Mbps
Max. LAN ports speed
1G
SFP+ cages
4
Optical interfaces
(4) 10Gbps
Max. power consumption [W]
24
Serial port
RJ45, micro USB
Chassis design
Metal
Power via connector/terminal
230V AC, 12V DC
Operating temperature [°C]
0 up to 45
Width [mm]
440
Height [mm]
44
Depth [mm]
180
Default IP address
192.168.0.1
Default login and password
admin / admin
