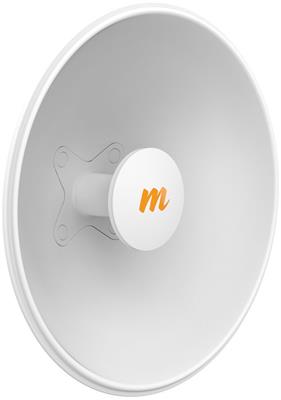

Mimosa N5-X25, dish Twist-on antenna, 25dBi, 400mm - 2-pack - Used
Your price incl. VAT (20.0%)
457.66 RON
✅ In Stock < 10 Бр.

Product description
The product is fully functional and used at the exhibition. It may not contain complete accessories or original packaging.
The product was used for outdoor testing (14 days). So there are visible signs of assembly.
N5-X25 is parabolic directional antenna with gain 25dBi and beamwidth angle 8° for use with C5x units. C5x is connected with antenna by Twist-on connector which eliminates loss on VF cables and connectors.
Antenna is Dual-Slant, polarizations are turn over by 45°. The are 2pcs in package!
Download
Technical parameters
LAN ports
MIMO, SISO
2 x 2 (slant - 45° turned)
Polarization
VH (slant)
Wind load [km/h]
200
Wireless frequency
5 GHz
Elevation beam width (-6dB) [°]
8
Azimuth beam width (-6dB) [°]
8
Antenna type
Directional
RF connectors
Twist-on port (Mimosa)
Purpose
Outdoor
Antenna gain [dBi]
25
Weight [kg]
1
Width [mm]
429
Height [mm]
429
Depth [mm]
116
