Teltonika TSW114 Gigabit Din Rail Switch
Your price incl. VAT (20.0%)
203.45 RON
❌ The item is not available. There is no option to order.
No confirmed delivery date
Product description

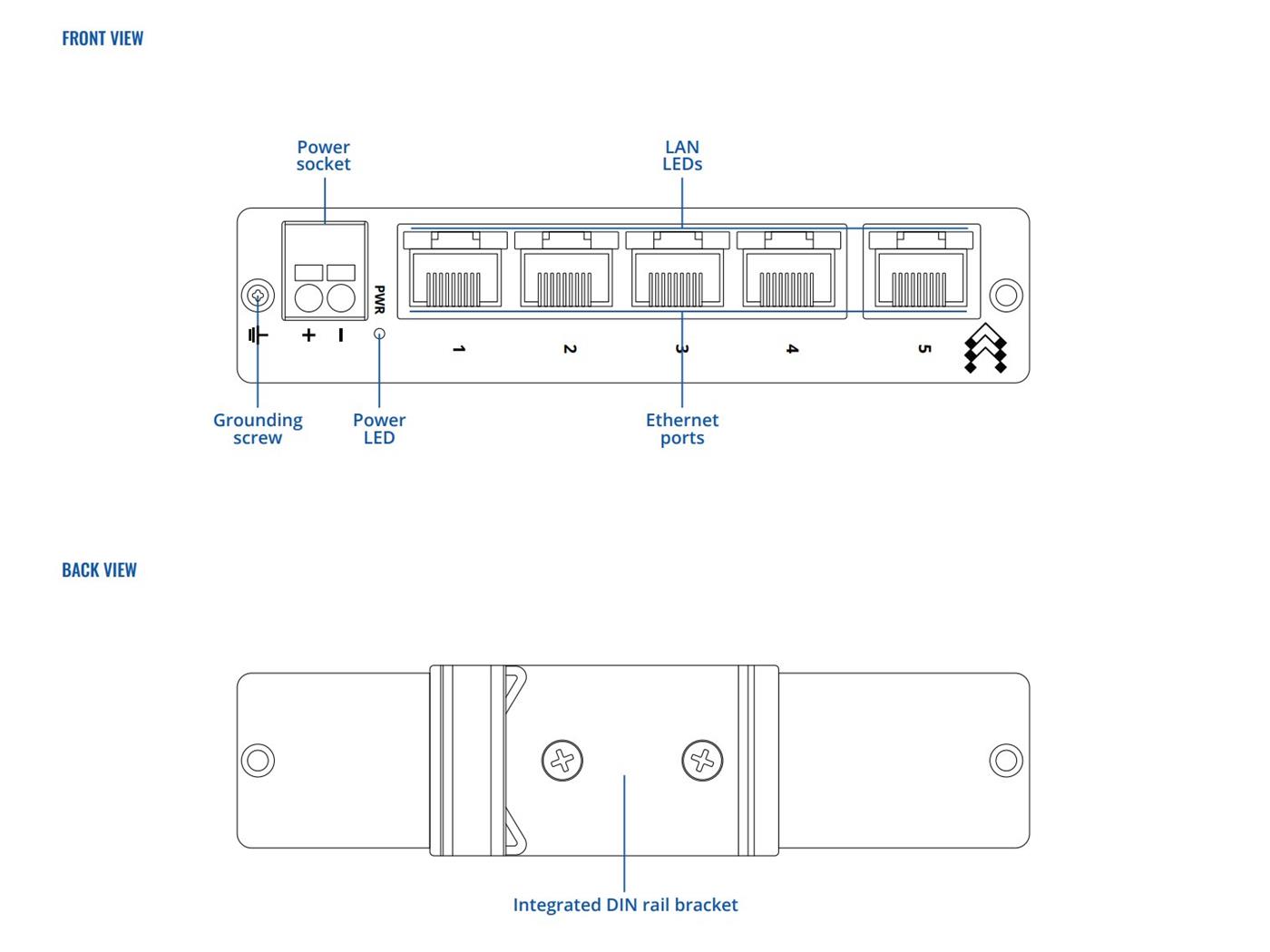

Teltonika TSW114 is an affordable way to simplify your connectivity with its plug and play nature and 5 x Gigabit Ethernet ports that provide stable and reliable connectivity for high-bandwidth solutions. The switch has front-facing ports and an integrated DIN rail bracket to enable easy installation across many industrial environments - especially control cabinets.
EASY MOUNTING
Integrated DIN rail bracket and front-facing ports
GIGABIT ETHERNET
5 x Gigabit Ethernet ports with speeds of up to 1000 Mbps
COMPACT & DURABLE
Rugged anodized aluminum housing that fits in your pocket
PLUG AND PLAY
No additional configuration needed
Package Contains
- Device
- QSG (Quick Start Guide)
Download
Technical parameters
LAN ports
Jumbo frame [Bytes]
9216
Protection class
IP30
Design
DIN rail
Switchning capacity [Gbps]
10
MAC address table
2000
Power type
DC connector
Fans
No
LAN speed
(5) 10/100/1000Mbps
Max. LAN ports speed
1G
Gigabit LAN
Yes
RJ45 ports 1G
5
Max. power consumption [W]
2,3
Chassis design
Metal
Power via connector/terminal
9 .. 30V DC
Operating temperature [°C]
-40 up to 75
Weight [g]
174
Depth [mm]
81
Width [mm]
113
Height [mm]
28
