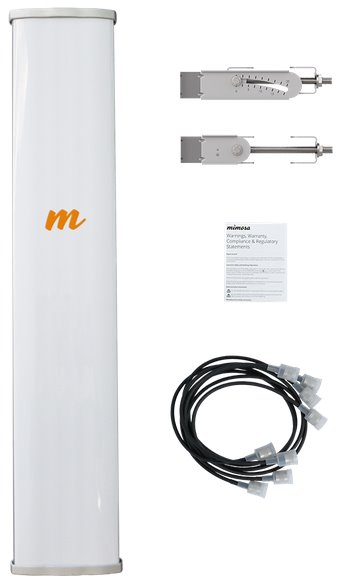

Mimosa N5-45x4 sector slant antenna 45°, 22dBi, 4x N female - Bazar

Mimosa N5-45x4 sector slant antenna 45°, 22dBi, 4x N female - Bazar
unpacked
-28%
Your price incl. VAT (20.0%)
1,052.40 RON
✅ In Stock < 10 Бр.
Delivery Planned Delivery Date by Courier to you 01-01-2025
Mimosa
Manufacturer
Product number
B-100-00084(N5-45x4)
Product Code
RL024.257
Warranty
12 months

Product description

The goods have been unpacked, may not be in the original packaging, or the packaging may be damaged. However, the goods are complete and without any damage.

Download

https://download.discomp.cz/Mimosa/Datasheet/N5-45x4.pdf
Download Datasheet

Technical parameters

LAN ports
MIMO, SISO
4 x 4 (slant - 45° turned)
Polarization
VH (slant)
Designed for mast diameter [mm]
38 up to 90
Cross-Pol Isolation [dB]
30
Wind load [km/h]
200
Protection class
IP55
Wireless frequency
5 GHz
Elevation beam width (-6dB) [°]
9
Azimuth beam width (-6dB) [°]
42
Antenna type
Sector
RF connectors
(4) N female
Purpose
Outdoor
Antenna gain [dBi]
22
Operating temperature [°C]
-40 up to 55
Weight [kg]
4,1
Width [mm]
143
Height [mm]
734
Depth [mm]
76
