Ubiquiti LTU-Instant-5, UISP LTU Instant, 5-pack
Planned Delivery Date by Courier to you 04-12-2024
Product description
LTU-Instant-5 is a set of five LTU heads for upgrading the LBE-5AC-Gen2 from AC to LTU. It is a PtMP client unit for the 5GHz band with an antenna gain of 22 dBi (used with LBE-5AC-Gen2) and LTU's proprietary wireless technology, which is not built on the limited 802.11 standard, thus achieving real TCP/IP speed of 550 Mbps+, modulation up to 1024 QAM and higher spectral efficiency 21.2 bps/Hz, which is double compared to the 802.11AC standard!
Functions

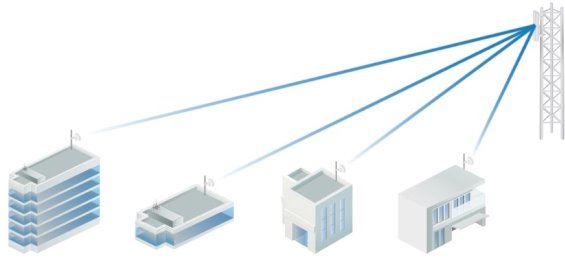

- PtMP client unit
- 1024 QAM
- 10/20/30/40/50 MHz channel width
- The setting is handled centrally by the AP
- Frequency separation of Tx and Rx frequency
- Automatic performance adjustment
- Bridge and router mode support
- Quick setup via bluetooth using the UISP Mobile application
Option to set different Tx and Rx frequency
LTU technology allows you to use different frequencies for transmit (Tx) and receive (Rx) to avoid interference, thus increasing the throughput of your network.
Compatibility
LTU is a completely new platform based on proprietary technology that does not use the 802.11 protocol. It is not compatible with devices from the airMAX M5 or airMAX 5AC series. On the other hand, although LTU is based on the technology used by airFiber products, they use a different protocol for communication, so LTU products are not compatible with AF-5X or AF-5/5U products either.

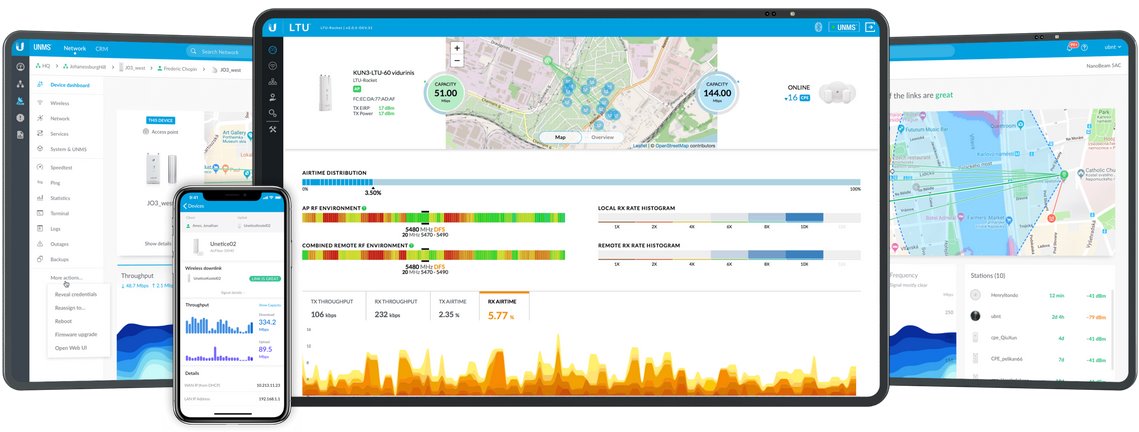

Software
In addition to their own web management, LTU products are also supported by UISP software for central control and management of Ubiquiti devices.
Package contents
- (5) Equipment - radiator only
- Gigabit PoE power adapter 24 V/0.5 A
- Power cord
