RF elements omni Antenna for Stationbox 2.4GHz/2dBi

RF elements omni Antenna for Stationbox 2.4GHz/2dBi
Your price incl. VAT (20.0%)
9.11 RON
✅ In Stock 30+ Бр.
Delivery Planned Delivery Date by Courier to you 04-12-2024
RF elements
Manufacturer
Product number
OARDSBX242
Product Code
RL002.083
Warranty
24 months

Product description

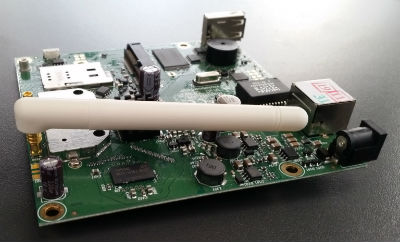

Compact Indoor Omni-Directional Antenna designed to be used with MikroTik RouterBoard RB912/RB711 when installed inside of StationBox®InSpot . Direct connection to MMCX port of integrated radio eliminates pigtails, saves cost and decreases RF losses. Installation is super quick and easy.


Download

https://download.discomp.cz/RFelements/Datasheets/Datasheet-Antenna-Omni-24G2dbi.pdf
Download Datasheet

Technical parameters

LAN ports
MIMO, SISO
1 x 1
VSWR
< 1,5
Wireless frequency
2.4 GHz
Elevation beam width (-6dB) [°]
13
Azimuth beam width (-6dB) [°]
360
Antenna type
Omnidirectional
RF connectors
(1) MMCX
Purpose
Indoor
Antenna gain [dBi]
2
Material
UV stabilized plastic
Weight [kg]
0,1
Width [mm]
8
Height [mm]
9,4
Depth [mm]
8
