RF elements STH-A45-USMA Asymmetrical antenna StarterHorn, 45°, USMA, 5GHz, 17dBi

RF elements STH-A45-USMA Asymmetrical antenna StarterHorn, 45°, USMA, 5GHz, 17dBi
Your price incl. VAT (20.0%)
480.49 RON
✅ In Stock 90+ Бр.
Delivery Planned Delivery Date by Courier to you 20-11-2024
RF elements
Manufacturer
RF elements
Product number
STH-A45-USMA
Product Code
RL019.978
Warranty
24 months

Having a question?
Pigtail Flexi 0,5m - N male / RSMA male
Pigtail Flexi 0,5m - N male / RSMA maleFL-RM-NM-005
33.13 RON excl. VAT
Add to Cart
Pigtail Flexi 0,25m - RSMA male / RSMA male
Pigtail Flexi 0,25m - RSMA male / RSMA maleFL-RM-RM-0025
28.05 RON excl. VAT
Add to Cart
Ubiquiti IS-5AC - 5 GHz IsoStation AC, airMAX AC, 45°
Ubiquiti IS-5AC - 5 GHz IsoStation AC, airMAX AC, 45°IS-5AC
513.02 RON excl. VAT
Add to Cart
Ubiquiti PS-5AC - airMax AC PrismStation, 5GHz Radio-only, shielded and features airPrism Active RF Filter
Ubiquiti PS-5AC - airMax AC PrismStation, 5GHz Radio-only, shielded and features airPrism Active RF FilterPS-5AC
1198.83 RON excl. VAT
Add to Cart

Download

https://download.discomp.cz/rfelements/datasheets/STH-A45-USMA.pdf
Download Datasheet

Technical parameters

LAN ports
MIMO, SISO
2 x 2
Polarization
VH
F/B ratio [dB]
30
Designed for mast diameter [mm]
20 up to 55
Wind load [km/h]
160
Protection class
IP55
Wireless frequency
5 GHz

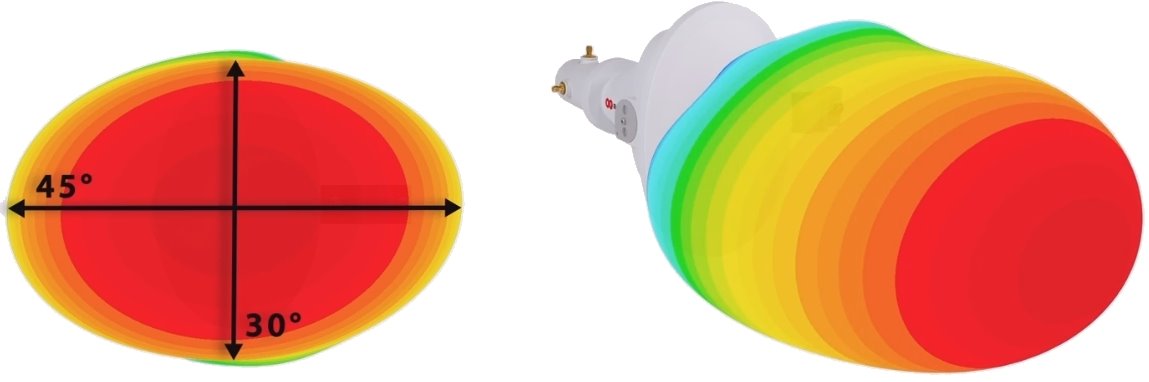

Elevation beam width (-6dB) [°]
30
Azimuth beam width (-6dB) [°]
45
Antenna type
Sector
RF connectors
(2) RSMA female
Purpose
Outdoor
Antenna gain [dBi]
17
Material
UV stabilized ABS plastic, Plastic, Aluminum, Stainless steel
Weight [kg]
0,9
Width [mm]
236
Height [mm]
223
Depth [mm]
291
