MikroTik Cloud Core Router, CCR2216-1G-12XS-2XQ
Your price incl. VAT (20.0%)
12,283.33 RON
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 26-06-2024
367.48 RON excl. VAT
Product description

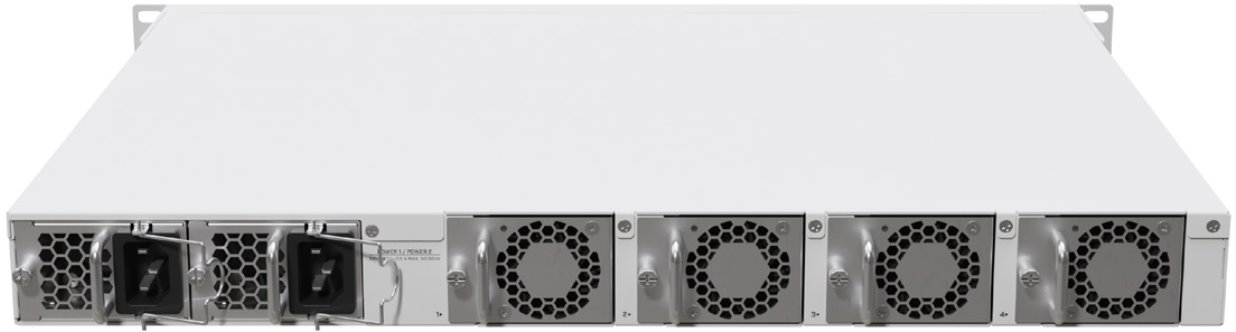

The new flagship Cloud Core Router 2216 with a very strong configuration designed for the most exposed places of your network and in compared to CCR1072 it is up to 4x more powerful!. There is 12x SFP28 at 1/10/25 Gbps, 2x QSFP28 at speeds of 100 Gbps and 1x 10/100/1000 Mbps ethernet, RJ45 console port, 4 hotswap fans, 2 redundant hotswap sources with input voltage 100 - 240 V and (2) M.2 PCI-e slots for SSD.
RouterOS v7 level 6 is pre-installed, offering 128 MB of internal storage and 16 GB of DDR4 RAM. The maximum power consumption of the device is 121 W with connected peripherals (80 W without peripherals).
Key Features
- (12) 1G/10G/25G (SFP28)
- (2) 100G (QSFP28)
- (1) 10/100/1000Mbps Ethernet
- (1) console RJ45 port
- AL73400 processor, 2GHz frequency, ARM 64bit
- 16GB RAM (DDR4)
- Storage 128 MB, NAND + (2) M.2 PCI-e slot (unmounted)
- RouterOS v7, Level 6 operating system
- (4) hotswap fans 40 × 40 mm
- (2) hotswap redundant powersource
Package Contents
- (1) Device
- (2) Power cord
- (1) 19" rack mounts
- (1) Cable management
Articles and reviews
Download
Technical parameters
LAN ports
Design
Rackmount
M.2 slots
2
Multiple WAN
Yes
Power type
Mains power (230V)
"U" positions
1
Operating system
RouterOS - L6
Fans
(4) 40 x 40 mm
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
SFP28 cages
12 (1G/10G/25G support)
QSFP28 cages
2
Optical interfaces
(12) 1G/10G/25Gbps + (2) 100Gbps
Redundant power supply
Yes
Max. power consumption [W]
121
Serial port
RJ45
Chassis design
Metal
Power via connector/terminal
230V AC
Operating temperature [°C]
-20 up to 60
Width [mm]
443
Height [mm]
44
Depth [mm]
367
CPU
AL73400
CPU frequency [MHz]
2000
CPU cores
16
IPv6 support
Yes
Default IP address
192.168.88.1
Internal storage [MB]
128
RAM [MB]
16384
Default login and password
admin / -
