RF elements AS-3-17HV - Array Sector Antenna, 3 GHz, 17dBi
Your price incl. VAT (20.0%)
541.32 RON
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 01-01-2025
Product description

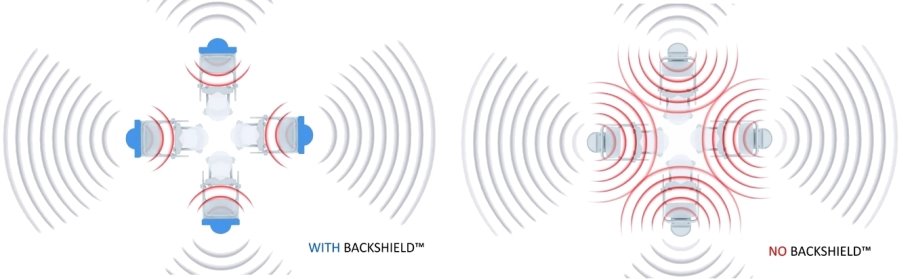

Array Sector 3-17HV dualpolarization antenna from RF Elements operating in the 3 GHz frequency band (3400 - 3800 MHz) with a gain of 17 dBi and a beam angle 118°. An important element built into the antenna structure is the so-called Backshield, which is a frequency reflector built into the antenna structure designed to reduce lateral lobes and back radiation.
Compatibility with radio units
The Array Sector 3-17 sector antenna is compatible with units from Ubiquiti thanks to the Rocket kit - Rocket M3 and Rocket M365.
Package Contents
- Antennas
- Mast holder (clamps, screws)
- Transmitter cover
Download
Technical parameters
LAN ports
MIMO, SISO
2 x 2
Polarization
VH
VSWR
< 1,6
F/B ratio [dB]
30
Designed for mast diameter [mm]
40 up to 80
Cross-Pol Isolation [dB]
30
Wind load [km/h]
160
Rocket kit
Yes
Protection class
IP55
Wireless frequency
3.5 GHz
Elevation beam width (-6dB) [°]
9
Azimuth beam width (-6dB) [°]
118
Antenna type
Sector
RF connectors
(2) RSMA male
Purpose
Outdoor
Antenna gain [dBi]
17
Material
Aluminum, UV stabilized ABS plastic, Stainless steel
Operating temperature [°C]
-35 up to 60
Weight [kg]
3,9
Width [mm]
160
Height [mm]
804
Depth [mm]
63
