MikroTik Cloud Core Router, CCR2116-12G-4S+

Product description

Thanks to its very strong configuration, it is the perfect device for professionals in busy locations. There is 4x SFP+ with speed 1/10 Gbps and 13x 10 / 100 / 1000Mbps ethernet, console port type RJ45, 4 fans, 2 redundant power supplies with input voltage 100 - 240 V and M.2 PCI-e slot for SSD up to 8 TB.

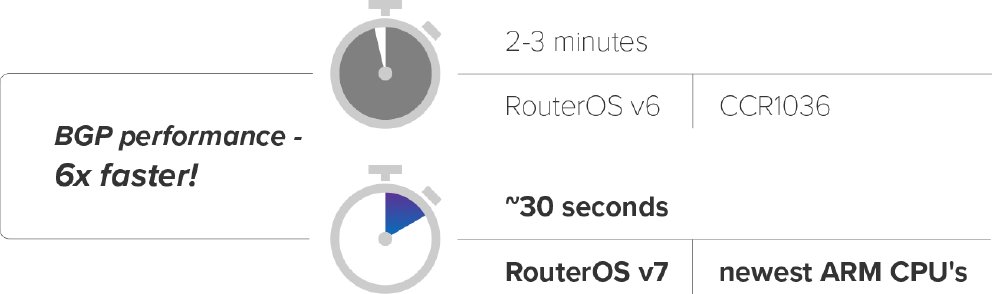

RouterOS v7 level 6 is pre-installed, offering 128 MB of internal storage and 16 GB of DDR4 RAM. The maximum power consumption of the device is maintained at an acceptable 72 W with connected peripherals. Thanks to the new RouterOS v7, the router has up to 6 times higher performance when loading BGP.

Equipment

• (4) 1G/10G SFP+
• (13) 10 / 100 / 1000Mbps Ethernet
• (1) console RJ45 port
• Processor AL731400, frequency 2 GHz, ARM 64bit
• 16GB RAM (DDR4)
• Storage 128 MB, NAND + M.2 PCI-e slot (unmounted)
• RouterOS v7, Level 6 operating system
• Dimensions 443 x 199 x 44 mm
• (4) 40 x 40mm fans

Package Contents

• (1) Devices
• (2) Power cord
• (1) 19 "rack mounts
