TP-Link EAP615-wall Access Point

Product description

The EAP615-wall is a wireless Access Point from the TP-Link brand, from the EAP family, and is designed for indoor use with surface mounting on a box. Dual-band AP with support for WiFi standards 802.11a / b / g / n / ac / ax is 2x2 MIMO on both 2.4GHz and 5GHz parts with modulation speeds 574 + 1201 Mbps and four built-in antennas with 4dBi and 3dBi gain.

LAN and PoE

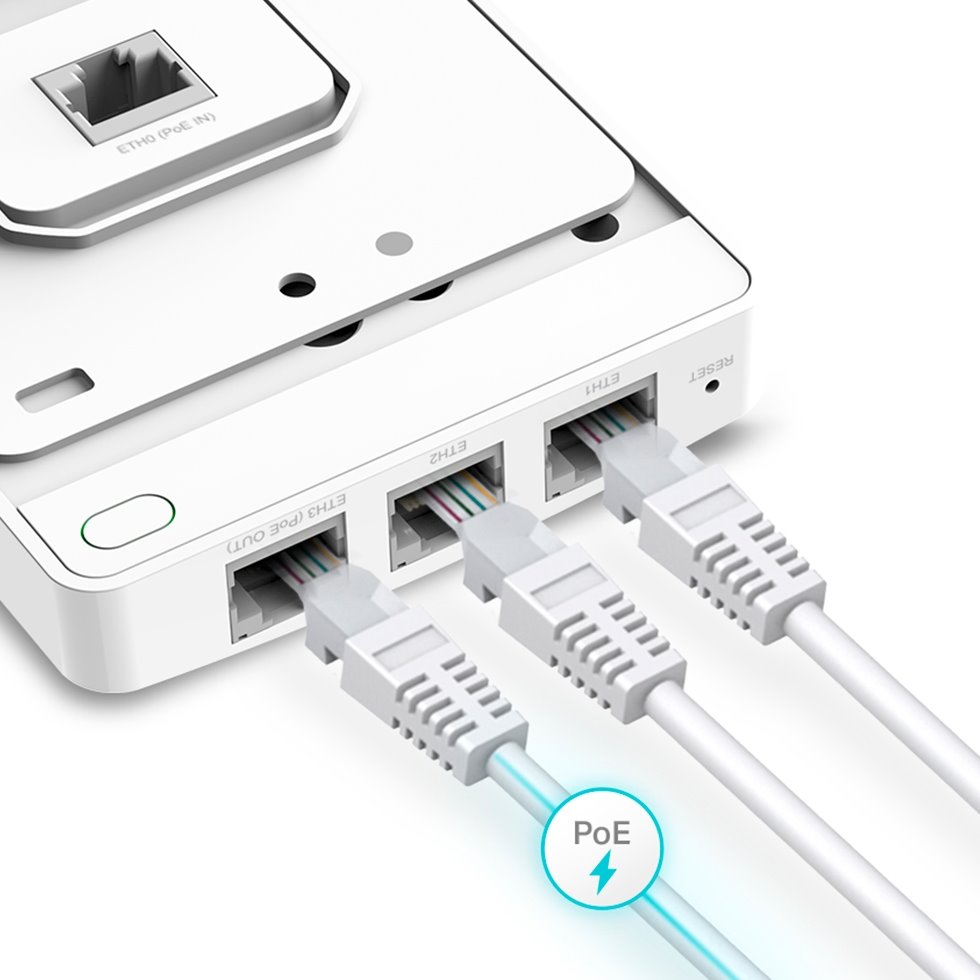

The AP has a total of four 10 / 100 / 1000 Mbps LAN ports, the first of which supports PoE IN and 802.3af/at. The last port also supports PoE-throughput (PoE-out) and can power other devices such as VoIP, IP camera and other devices with a maximum consumption of 13 W.

Key Features

• Central management of EAP units via Omada SDN controller

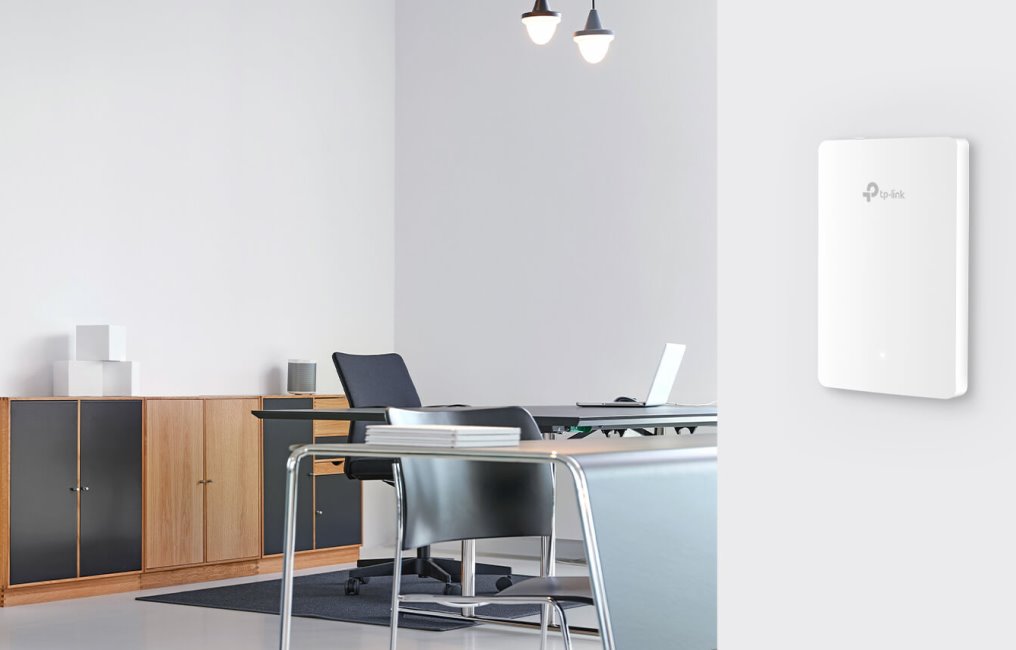

• Design allows easy installation in wall wiring boxes for mains distribution standardized for EU and US
• Compact design with a slim profile and easy installation
• 4x 10 / 100 / 1000 Mbps LAN
• Fast WiFi - 574 Mbps (2.4 GHz), 1201 Mbps (5 GHz)
• PoE Out support on the last port
• Feature support: Airtime fairness, Band steering and Beamforming

Package Contents

• Device
• Mounting screws

Download

https://download.discomp.cz/tp-link/datasheets/EAP_Datasheet.pdf

Datasheet
