RF elements Asymmetrical Horn Antenna Carrier Class, 5GHz, 17dBi, 60°, V2

RF elements Asymmetrical Horn Antenna Carrier Class, 5GHz, 17dBi, 60°, V2
Your price incl. VAT (20.0%)
683.24 RON
✅ In Stock 10+ Бр.
Delivery Planned Delivery Date by Courier to you 04-12-2024
RF elements
Manufacturer
Product number
HG3-CC-A60-V2
Product Code
RL018.990
Warranty
24 months

Product description

HG3-CC-A60-V2 is a 5GHz sector antenna of the "horn" type from the workshop RF elements and is characterized by 60° asymmetric beam angle, gain 17 dBi and 2x N-Female connectors. This antenna offers the perfect combination of features and functions that address the major weaknesses of today's mainstream sector antennas.

HG3-CC-A60-V2

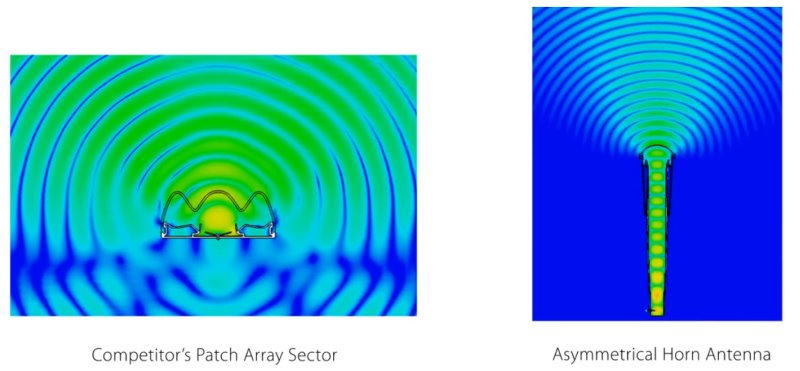

No side lobes

Asymmetrical Horn CC Antennas have naturally suppressed side lobes because of their optimized design: they focus energy into a single main beam. Absence of side lobes enables excellent noise immunity of a network when using Asymmetrical Horn CC Antennas.

HG3-CC-A60-V2

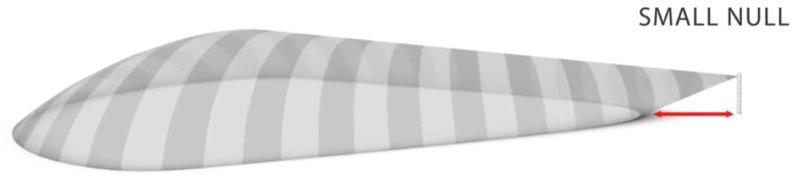

Coverage without dead zones

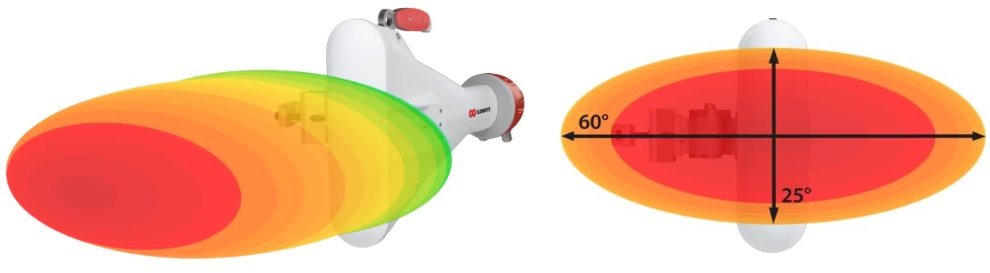

The coverage of traditional sector antennas has a specific shape - if the AP is too high, then clients who are close suffer from poor signal quality. As the saying goes: "there is the greatest darkness under the candlestick." Asymmetric sector antennas emit a signal with a circularly flat-shaped shaped beam. For this reason, signal coverage from asymmetric sector antennas is almost free of dead zones, and clients located close to the AP will be satisfied.

HG3-CC-A60-V2

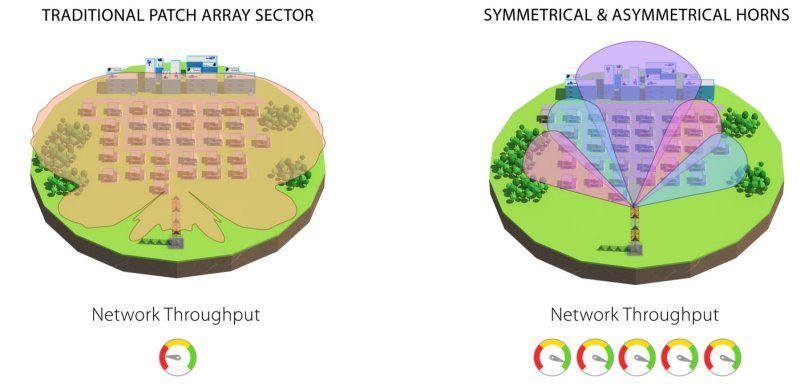

Excellent scalability

Unique radiation characteristics, minimal side lobes and extremely low back radiation allow the placement of multiple antennas at one point and the construction of multiple separate points, which will allow better distribution of load on individual APs and increase speeds to individual clients.

HG3-CC-A60-V2

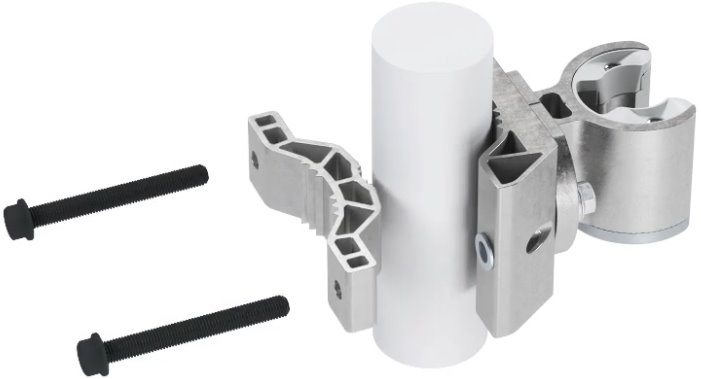

Innovative bracket

HG3-CC asymmetric antennas feature an innovative mounting system. The mount is separated from the antenna, making the installation and adjustment quick and easy.

HG3-CC-A60-V2

Package Contents

  • Antenna
  • Precision bracket

Download

https://download.discomp.cz/rfelements/datasheets/HG3-CC-A60-V2.pdf
Download Datasheet

Technical parameters

LAN ports
MIMO, SISO
2 x 2
Polarization
VH
VSWR
< 1,8
F/B ratio [dB]
27
Designed for mast diameter [mm]
40 up to 80
Wind load [km/h]
160
Protection class
IP55
Wireless frequency
5 GHz
Elevation beam width (-6dB) [°]
25
Azimuth beam width (-6dB) [°]
60
Antenna type
Sector
RF connectors
(2) N female
Purpose
Outdoor
Antenna gain [dBi]
17
Material
Aluminum, UV stabilized ABS plastic, Stainless steel, Polycarbonate
Weight [kg]
5,1
Width [mm]
101
Height [mm]
342
Depth [mm]
469
