Ubiquiti UMA-D - Dual Band Directional Mesh Antenna

Ubiquiti UMA-D - Dual Band Directional Mesh Antenna
Your price incl. VAT (20.0%)
476.71 RON
❌ The item is not available. There is no option to order.
Delivery No confirmed delivery date
Ubiquiti Networks
Manufacturer
Ubiquiti Networks
Product number
UMA-D
Product Code
RL015.645
Warranty
24 months

Having a question?
Ubiquiti UniFi AP AC Mesh, UAP-AC-M
Ubiquiti UniFi AP AC Mesh, UAP-AC-MUAP-AC-M
402.78 RON excl. VAT
Add to Cart
Ubiquiti UniFi AP AC Mesh, UAP-AC-M-5, 5 pack
Ubiquiti UniFi AP AC Mesh, UAP-AC-M-5, 5 packUAP-AC-M-5
1986.35 RON excl. VAT
Add to Cart
Antenna holder on mast L , lenght 35cm, height 20cm, d=42mm + 1x U-Bolt 100mm
Antenna holder on mast "L", lenght 35cm, height 20cm, d=42mm + 1x U-Bolt 100mmSL1-100-035-020-042
39.64 RON excl. VAT
Add to Cart

Product description

UMA-D is a directional or sector dual-band 2x2 MIMO antenna with a 90° beamwidth angle in the 2.4GHz and 45° beamwidth angle in the 5GHz band. Antenna gain in 2.4GHz band is 10dBi and at 5GHz the gain is up to 15dBi. 2 RSMA female connectors are used for connection to the transmitter. Attachment to the mast / wall is possible by attached 3-axis ball joint, screws and metal straps.

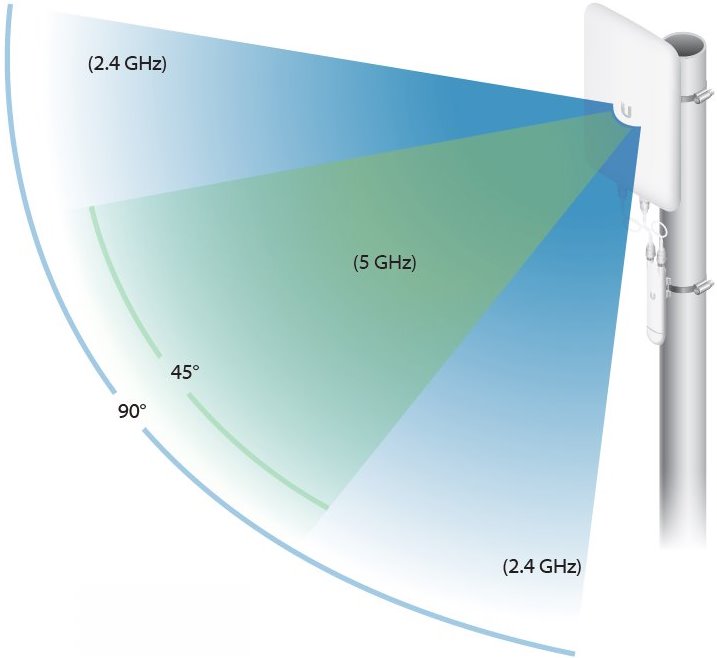

UMA-D Beanwidth

Package contains

  • Antenna
  • Holder
  • Metal ring
  • (2) pigtail (RSMA-male - RSMA-male)

Download

https://download.discomp.cz/Ubiquiti/Datasheets/UMA-D.pdf
Download Datasheet

Technical parameters

LAN ports
MIMO, SISO
2 x 2
VSWR
< 2,0
Cross-Pol Isolation [dB]
25
Wireless frequency
2.4 + 5 GHz (dual band)
Elevation beam width (-6dB) [°]
45
Azimuth beam width (-6dB) [°]
90
Antenna type
Sector
RF connectors
(2) RSMA female
Purpose
Outdoor
Antenna gain [dBi]
15, 10
Material
UV stabilized plastic
Width [mm]
128
Height [mm]
201
Depth [mm]
33
