Ubiquiti UniFi Switch USW-48-PoE Gen2

Ubiquiti UniFi Switch USW-48-PoE Gen2
Your price incl. VAT (20.0%)
3,108.62 RON
Ordered for stock
Delivery Planned Delivery Date by Courier to you 19-02-2025
Ubiquiti Networks
Manufacturer
Product number
USW-48-PoE
Product Code
RL010.199
Warranty
24 months

Product description

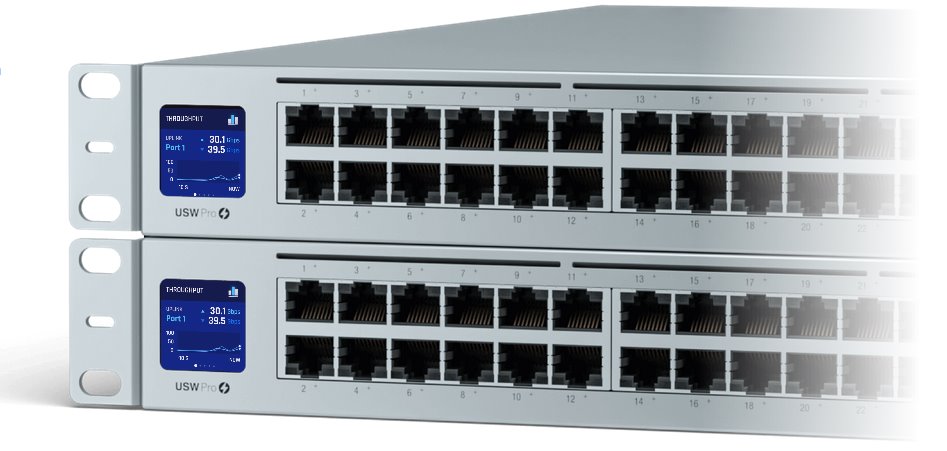

USW-48-POE is a configurable Gigabit Layer 2 switch with 48 Gigabit Ethernet ports including 32 auto-sensing 802.3at PoE+ ports, and 4 SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-48-POE features a 1.3" touch LCM to provide status information.

UBNT USW-48-POE

Management via UniFi Controller

Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-48-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

UBNT USW-48-POE

Package contains

  • Device
  • Power cord
  • Rackmount ears

Download

https://dl.ubnt.com/ds/usw_poe_ds
Download Datasheet
https://dl.ubnt.com/qig/usw-48
Download Installation Guide
https://dl.ubnt.com/qsg/USW-48-POE/USW-48-POE_EN.html
Download Quick Guide

Technical parameters

LAN ports
Design
Rackmount
Switchning capacity [Gbps]
104
MAC address table
16000
Jumbo frame [Bytes]
9000
Management
UniFi Network
Features
VLAN, DHCP snooping
Power type
Mains power (230V)
Fans
Yes
LAN ports
48
LAN speed
(48) 10/100/1000Mbps
Max. LAN ports speed
1G
PoE type
PoE-Out (only)
SFP cages
4
Optical interfaces
(4) 1000Mbps
PoE-Out standards
802.3af, 802.3at
PoE Out ports
32
PoE budget [W]
195
Max. power consumption [W]
45
Chassis design
Metal
Power via connector/terminal
230V AC
Operating temperature [°C]
-5 up to 40
Width [mm]
442
Height [mm]
44
Depth [mm]
285
Default IP address
Dynamic from DHCP, 192.168.1.20
Default login and password
ubnt / ubnt
Other features
Touchscreen
