Design

Desktop

Switchning capacity [Gbps]

9,6

MAC address table

4000

Packet forwarding rate [Mpps]

7,14

Web management

Yes

Management

Web management

Features

VLAN, L2

Power type

DC connector

Fans

No

LAN speed

(8) 10/100Mbps + (2) 10/100/1000Mbps

PoE type

PoE-Out (only)

PoE-Out standards

802.3af, 802.3at, 802.3bt

PoE Out ports

8

PoE budget [W]

110

Long range PoE - up to 250m

Yes

Max. power consumption [W]

120

Chassis design

Metal

Power via connector/terminal

54V DC

Buttons

Reset

Operating temperature [°C]

0 up to 40

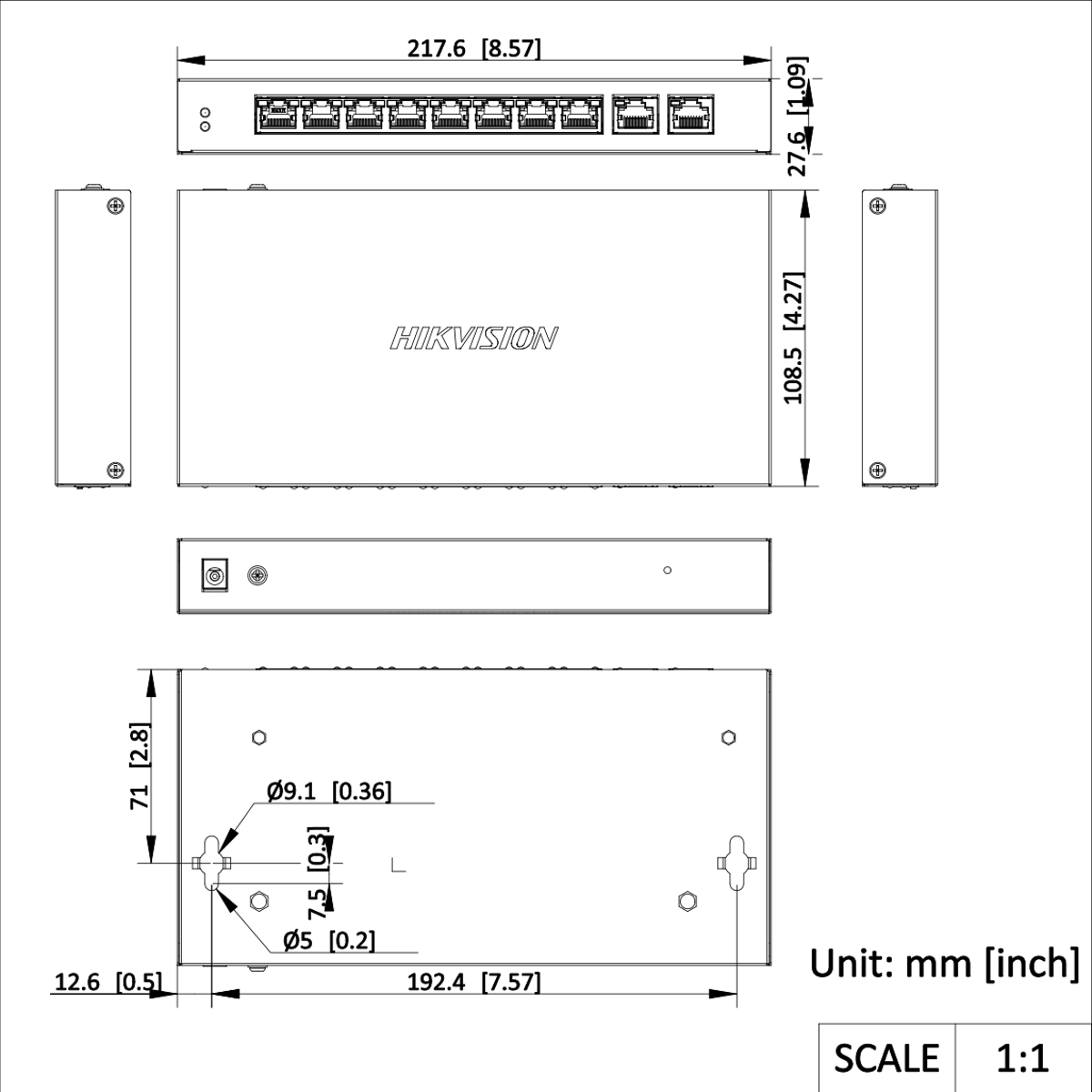

Width [mm]

218

Height [mm]

28

Depth [mm]

109

Default IP address

10.180.190.200, Dynamic from DHCP
