Teltonika RUTC50 Industrial 5G eSIM Router

Teltonika RUTC50 Industrial 5G eSIM Router
Вашата цена с ДДС (20.0%)
3,446.95 RON
❌ Артикулът не е наличен. Няма възможност за поръчка.
Delivery Без потвърдена дата на доставка
Teltonika
Производител
Продуктов номер
RUTC50210000
Продуктов Код
RL030.091
Гаранция
24 месеца

Описание на продукт

Това е автоматичен превод. Оригиналния текст може да видите тук

Teltonika RUTC50 is an robust industrial multi-network router that offers 5G mobile communication for high-speed and data-intensive applications. 5G mobile communication with the option of dual SIM (plus eSIM - up to 7 eSIM profiles) configuration is combined with 5 Gigabit Ethernet ports and dual-band Wi-Fi 6 enabling reliable data transmission with ultra-low latency.

The power of 5G technology combined with a wide range of interfaces and industrial hardware features ensures adaptability for future upgrades and expansion of the entire system.

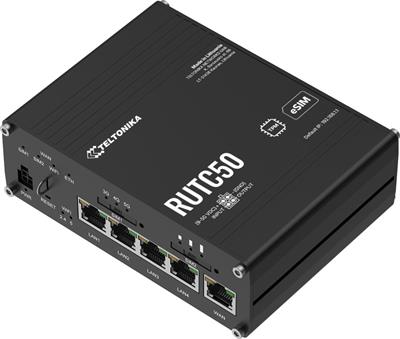

Teltonika RUTC50

Main advantages

  • Compact size
  • Powerful 5G / WiFi system
  • Supports GNSS positioning

Including advanced RutOS

RUTC50 is shipped with RutOS which provides advanced security features and specialized industry protocols for a wide range of professional application scenarios. It is fully compatible with Teltonika RMS remote management with the possibility of monitoring large groups of devices.

Key Features

  • Combined router with variable connection
  • Durable aluminum cover
  • Supports 5G networks, MU-MIMO 802.11ax and gigabit ethernet
  • RutOS operating system

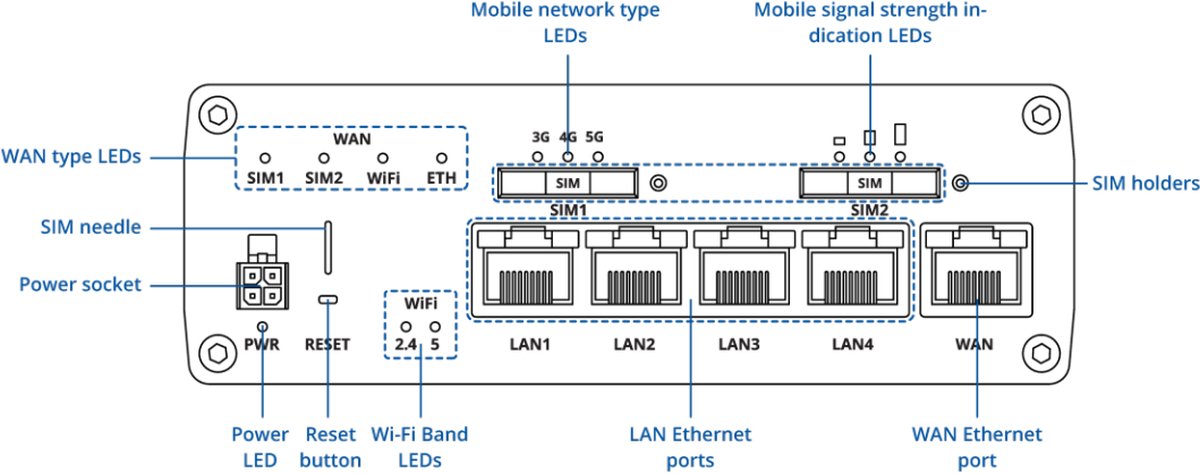

  • Interfaces: 5× 10/100/1000 Mbps (1× WAN, 4× LAN), 4× SMA for 5G, 3× RP-SMA for WiFi, 1× SMA for GNSS, 1× digital in, 1× digital out, 1× USB, 2× SIM slot (Mini SIM – 2FF)
  • TPM: Identification and authentication module, TPM 2.0 standard

Notice: POE-IN support on LAN1 port is available from HW revision 0003, Batch number 007. If the POE-IN function is important for you, we recommend verifying the product version via email inquiry.

Package contents

  • RUTC50 Router
  • Power adapter 24V / 1A
  • (4) 5G Mobile antennas (swivel, SMA male)
  • (3) Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
  • GNSS antenna (adhesive, SMA male, 3 m cable)
  • Patch cable
  • SIM Adapter kit

Свали

https://download.discomp.cz/Teltonika/Datasheets/rutc50-datasheet-v131-RUTC50210000.pdf
Свали Datasheet
https://wiki.teltonika-networks.com/view/QSG_RUTC50
Свали Link to QSG
https://wiki.teltonika-networks.com/view/RUTC50_Manual
Свали Link to User Manual

Технически параметри

LAN ports
Power over Ethernet
9 .. 30V DC
Protection class
IP30
Design
Industry
Supported VPN
PPTP, L2TP, IPSec, OpenVPN, WireGuard, ZeroTier, GRE, Tinc
Operating mode
Client, AP Router, Access Point, Cellular router
Management
Web management, SSH, Teltonika RMS
Wireless frequency
2.4 + 5 GHz (dual band), LTE, 3G (GSM), 4G (GSM), 5G (GSM)
WiFi standards
802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax
Transmission speed - 5GHz [Mb/s]
2402
Transmission speed - 2.4GHz [Mb/s]
574
Security
WPA, WPA2, WPA3
2.4GHz MIMO
2 x 2
5GHz MIMO
2 x 2
Type of antenna
Detachable
Detachable antennas
8
RF connectors
(3) RSMA female, (5) SMA female
Integrated 4G/LTE radio part
Yes
Power type
PoE, 4-pin automotive
4G/LTE bands support
(1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (41) 2500 MHz, (42) 3500 MHz, (43) 3700 MHz, (28) 700 MHz, (32) 1500 MHz
5G bands support
(n1) 2100 MHz, (n3) 1800 MHz, (n5) 850 MHz, (n7) 2600 MHz, (n8) 900 MHz, (n20) 800 MHz, (n28) 700 MHz, (n38) 2600 MHz, (n40) 2300 MHz, (n41) 2500 MHz, (n75) 1500 MHz, (n76) 1500 MHz, (n77) 3700 MHz, (n78) 3500 MHz
Operating system
RutOS (OpenWrt based Linux OS)
LAN ports
5
LAN speed
(4) 10/100/1000Mbps + (1) 10/100/1000Mbps WAN
Max. power consumption [W]
20
Power via connector/terminal
9 .. 50V DC
Buttons
Reset
Operating temperature [°C]
-40 up to 75
Weight [g]
450
Width [mm]
130
Height [mm]
43
Depth [mm]
103
CPU
ARM Cortex-A53
CPU frequency [MHz]
1300
SIM slot
Yes
SIM slots quantity
2
USB
Yes
IPv6 support
Yes
Default IP address
192.168.1.1
Internal storage [MB]
8 GB
RAM [MB]
1024
Default login and password
admin / (preset password, see label/engraving)
GPS modul
Yes
