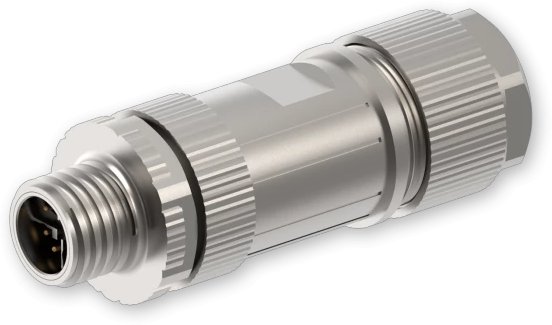

Teltonika PR40119K M12 X, 4-Pin, Male Connector
Вашата цена с ДДС (20.0%)
0.00 RON
Поръчан за склад
Планирана Дата Доставка на Куриер до Вас 17-09-2025
Описание на продукт
Това е автоматичен превод. Оригиналния текст може да видите тукMechanical/Environmental
- Voltage rating: 48 V AC / 60 V DC
- Current carrying capacity: 0.5 A
- Conductor cross section, solid wire: AWG 26/1 - AWG 22/1
- Conductor cross section, stranded wire: AWG 26/7 - AWG 22/7
- Temperature range: -40 °C to +85 °C
- Mounting method: Screwable (M12)
- Insertion and withdrawal force: less 30 N
- Life - number of mating cycles: ? 100
- IP rating: IP67 (when plugged in)
- Housing material: GD-Zn (zinc die-cast)
- Contact material: CuZnPb (brass)
- Contact finish material: Ni + Au (nickel-gold)
- Shield material: CuSn (tin bronze)
- Shield finish material: Sn (tin)
- Stuffer cap material: PA
- Finish material: Ni (nickel)
- Weight: 47 g
- RoHS: Yes
- REACH: Yes
