Mimosa B6x - Bazar
разопаковано
-14%
Вашата цена с ДДС (20.0%)
2,585.05 RON
✅ В наличност < 10 Бр.
Планирана Дата Доставка на Куриер до Вас 02-07-2025
Имате избор от 2 варианта
Описание на продукт
Стоката е разопакована, може да не е в оригиналната опаковка или опаковката да е повредена. Въпреки това стоките са пълни и без повреди.
Това е автоматичен превод. Оригиналния текст може да видите тукThe product is only unpacked and it was shown on the exhibition.

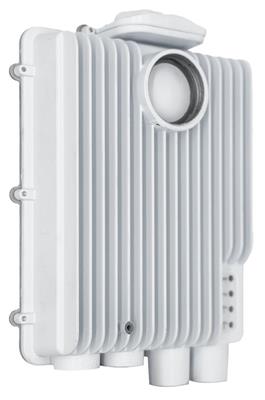

Mimosa B6x is an outdoor PtP unit. It operates in the 5.15 to 6.425 GHz band. The unit can be connected to N5-X twist on compatible antennas (antenna not included). It has the new Wi-Fi 6E technology with OFDMA. With access to the 6 GHz band, the B6x achieves extremely low latency (1ms) with speeds up to 3.14 Gbps. The transmit power is 24 dBm. The advantage is also higher reliability due to new anti-noise features. High resistance is guaranteed by IP67 certification.
Key features:
- Outdoor PtP unit
- Bandwidth: 5.15 to 6.425 GHz
- Possibility to connect an N5-X twist one compatible antenna
- Low latency of 1 ms
- Certificiaton IP67
Package Contents:
- Device
- QuickStart
Свали
Технически параметри
LAN ports
Power over Ethernet
48 .. 56V DC
Sensitivity [dBm]
-56
Protection class
IP67
Frequency range [MHz]
5150 - 6425
Maximum modulation
1024 QAM
Operating mode
Bridge
Wireless frequency
5 GHz, 6 GHz
WiFi standards
Mimosa SRS, WiFi Interop
Transmission speed - 5GHz [Mb/s]
4300
Transmission speed - 6GHz [Mb/s]
4300
Tx power 5GHz [dBm]
24
Tx power 6GHz [dBm]
24
Security
128bit AES
5GHz MIMO
4 x 4
6GHz MIMO
4 x 4
Type of antenna
Built-in, Detachable
RF connectors
Twist-on port (Mimosa)
Purpose
Outdoor
Antenna gain [dBi]
8
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Optical interfaces
(1) 10Gbps
Max. power consumption [W]
30
Power via connector/terminal
48 .. 56V DC
Buttons
Reset
Operating temperature [°C]
-40 up to 55
Weight [g]
1700
Width [mm]
167
Height [mm]
290
Depth [mm]
89
Default IP address
Dynamic from DHCP, 192.168.1.10
Default login and password
Is set by the user at the first startup
GPS modul
Yes
