RF elements TPA-ePMP TwistPort adaptor - Bazar

RF elements TPA-ePMP TwistPort adaptor - Bazar
използвано
-10%
Вашата цена с ДДС (20.0%)
92.88 RON
✅ В наличност < 10 Бр.
Delivery Планирана Дата Доставка на Куриер до Вас 02-07-2025
RF elements
Производител
Продуктов номер
B-TPA-ePMP
Продуктов Код
RL029.714
Гаранция
6 месеца

Описание на продукт

Продуктът е напълно функционален и използван на изложение. Може да не съдържа пълни аксесоари или оригинална опаковка.
Това е автоматичен превод. Оригиналния текст може да видите тук

The product is complete with the original package. It was only used on exhibition.

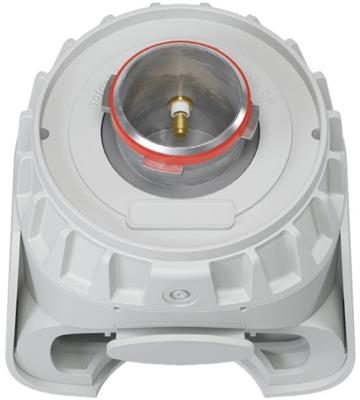

TwistPort Adaptor for ePMP 1000 AP, CSM, ePMP Force 300 CSM, ePMP 3000L AP allows easy integration with any RF-Elements antenna with TwistPort connector. TwistPort Adaptor uses special coaxial connectors without threads, so the integration of AP Radios is revolutionary easy. Simply slide the radio into the Adaptor until you hear “click”. To unlock, press the button and slide the radio out.

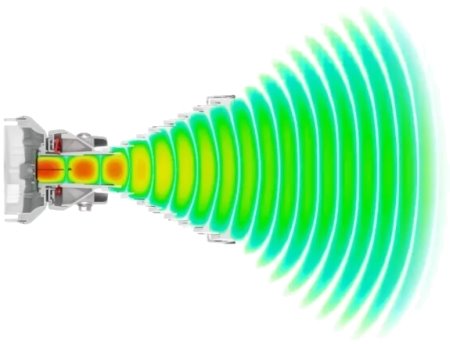

Symmetrical Sectors feature industry changing TwistPortTM Connector, our patent pending quick-locking waveguide port. TwistPortTM is virtually lossless: there are no coaxial RF connectors or RF cables, that cause significant signal loss. Connection and disconnection is brilliantly simple "twist and snap" and can be done with one hand.

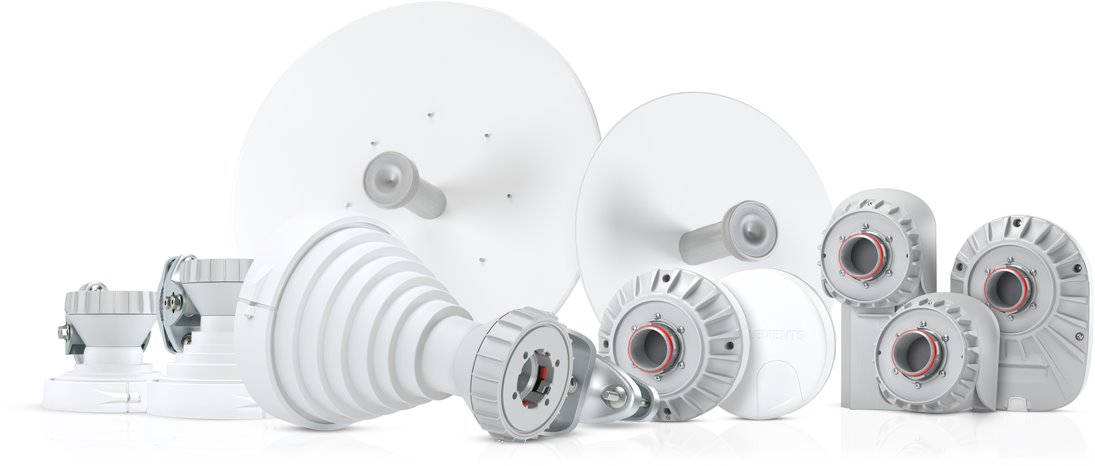

TwistPort Adaptors make most popular connectorized radios and MikroTik RouterBoards compatible with TwistPort antennas. Integration into TwistPort eco-system ensures the benefits of low loss, high scalability, easy co-location, simple deployment and easy maintenance.

Compatibility list

  • ePMP 1000 AP
  • CSM
  • ePMP 3000L AP
  • ePMP 300 CSM

Свали

https://rfelements.com/assets/Uploads/2017-12-22-User-Guide-UG-TPA-U03-web.pdf
Свали Installation Guide
https://rfelements.com/assets/Uploads/Datasheet-TPA-ePMP.pdf
Свали Datasheet

Технически параметри

LAN ports
MIMO, SISO
2 x 2
Polarization
VH
VSWR
< 1,8
Wireless frequency
5 GHz
RF connectors
TwistPort
Purpose
Outdoor
Material
Aluminum, UV stabilized ABS plastic
Operating temperature [°C]
-40 up to 60
Weight [g]
400
Width [mm]
112
Height [mm]
130
Depth [mm]
112
