RF elements Asymmetrical Horn Wideband Antenna, 5/6GHz, 17dBi, 60°

RF elements Asymmetrical Horn Wideband Antenna, 5/6GHz, 17dBi, 60°
Вашата цена с ДДС (20.0%)
1,994.58 RON
Поръчан за склад
Delivery Планирана Дата Доставка на Куриер до Вас 09-07-2025
RF elements
Производител
RF elements
Продуктов номер
AH60WB
Продуктов Код
RL029.117
Гаранция
24 месеца

Имате въпрос?
Имате избор от 3 варианта
RF elements Asymmetrical Horn Wideband Antenna, 5/6GHz, 18,5dBi, 45°
AH45WB
1,662.15 RON без ДДС
RF elements Asymmetrical Horn Wideband Antenna, 6/5 GHz, 15dBi, 90°
AH90WB
1,662.15 RON без ДДС
RF elements Asymmetrical Horn Wideband Antenna, 5/6GHz, 17dBi, 60°
AH60WB
1,662.15 RON без ДДС
RF elements ePMP b TwistPort adaptor for Cambium 4600L, 4600C
RF elements ePMP b TwistPort adaptor for Cambium 4600L, 4600CTPA-EPMP-B-6
193.40 RON без ДДС
Добави в кошница
RF elements TPA-SMA TwistPort adaptor for 6Ghz with 2x RP-SMA connectors
RF elements TPA-SMA TwistPort adaptor for 6Ghz with 2x RP-SMA connectorsTPA-SMA6
96.73 RON без ДДС
Добави в кошница

Технически параметри

LAN ports
MIMO, SISO
2 x 2
Polarization
VH
Designed for mast diameter [mm]
40 up to 80
Wireless frequency
5 GHz, 6 GHz

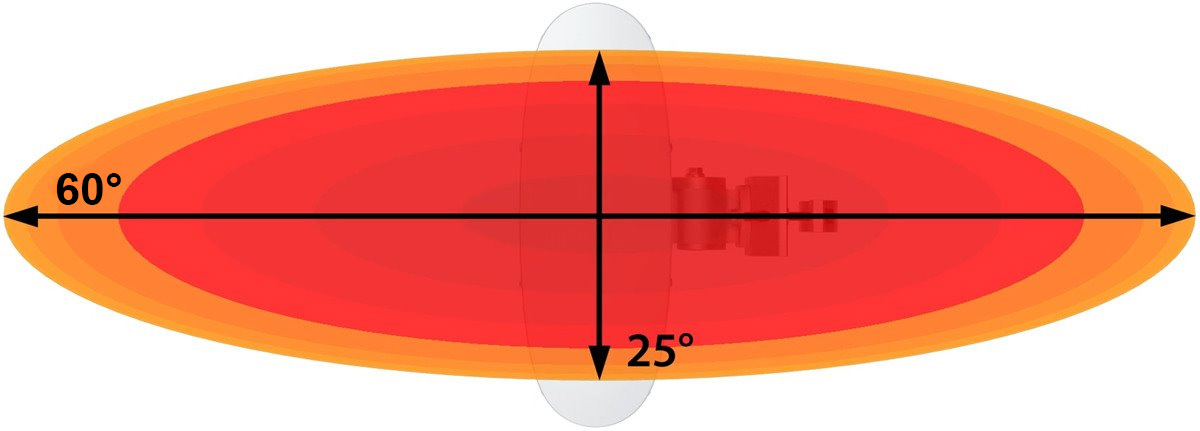

Azimuth beam width (-6dB) [°]
60
Elevation beam width (-6dB) [°]
25
Antenna type
Sector
RF connectors
TwistPort
Purpose
Outdoor
Antenna gain [dBi]
17

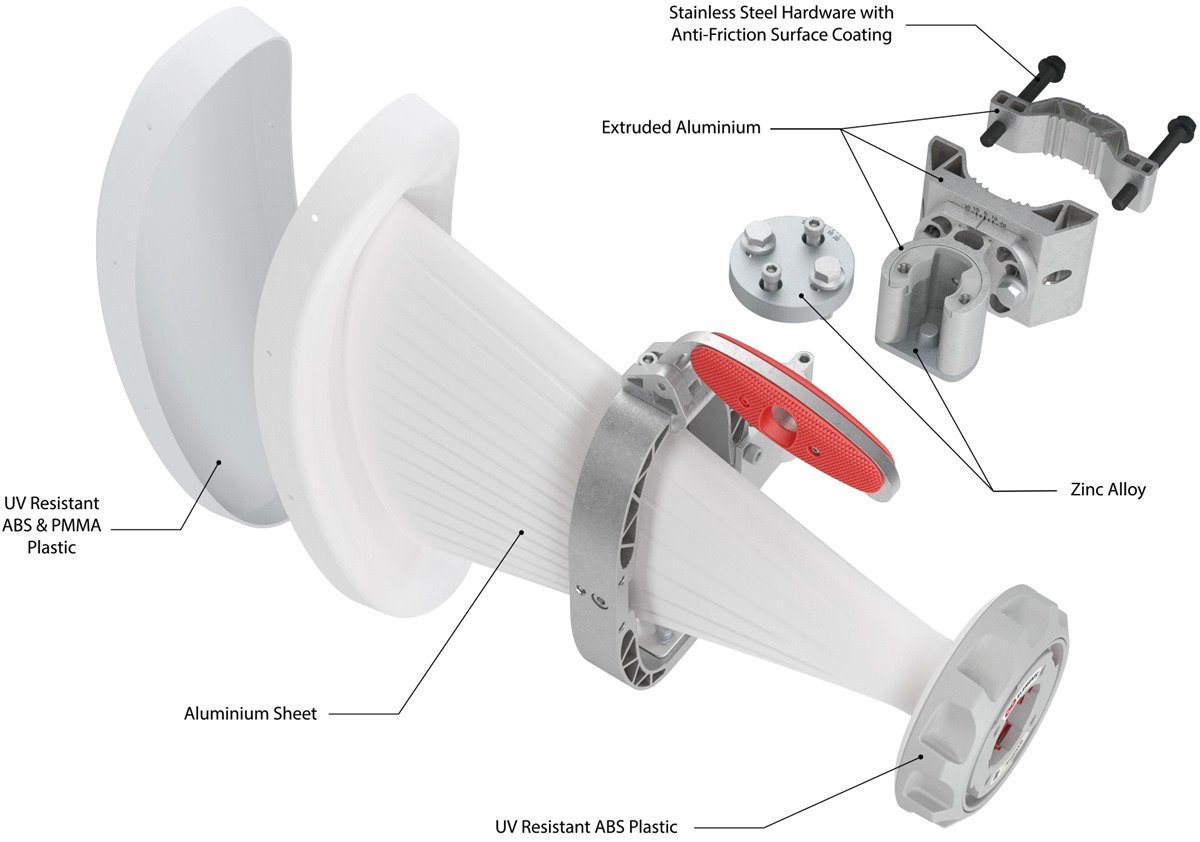

Material
ABS plastic, Aluminum, Zinc alloy
Depth [mm]
450
Width [mm]
316
Height [mm]
334
