TP-Link EAP650-Desktop - Omada AX3000 Wi-Fi 6 Access Point

Описание на продукт

EAP650-Desktop is a wireless Access Point from TP-Link, part of the EAP family, designed for indoor use on a desktop or wall. Dual-band AP supporting Wi-Fi 6 standards 802.11a/b/g/n/ac/ax is equipped with 2×2 MIMO on both 2.4GHz and 5GHz bands with modulation speeds of 574 + 2402 Mbps, five built-in antennas with gains of 5 and 4.7 dBi, and supports double capacity due to 160 MHz channel width in the 5 GHz band.

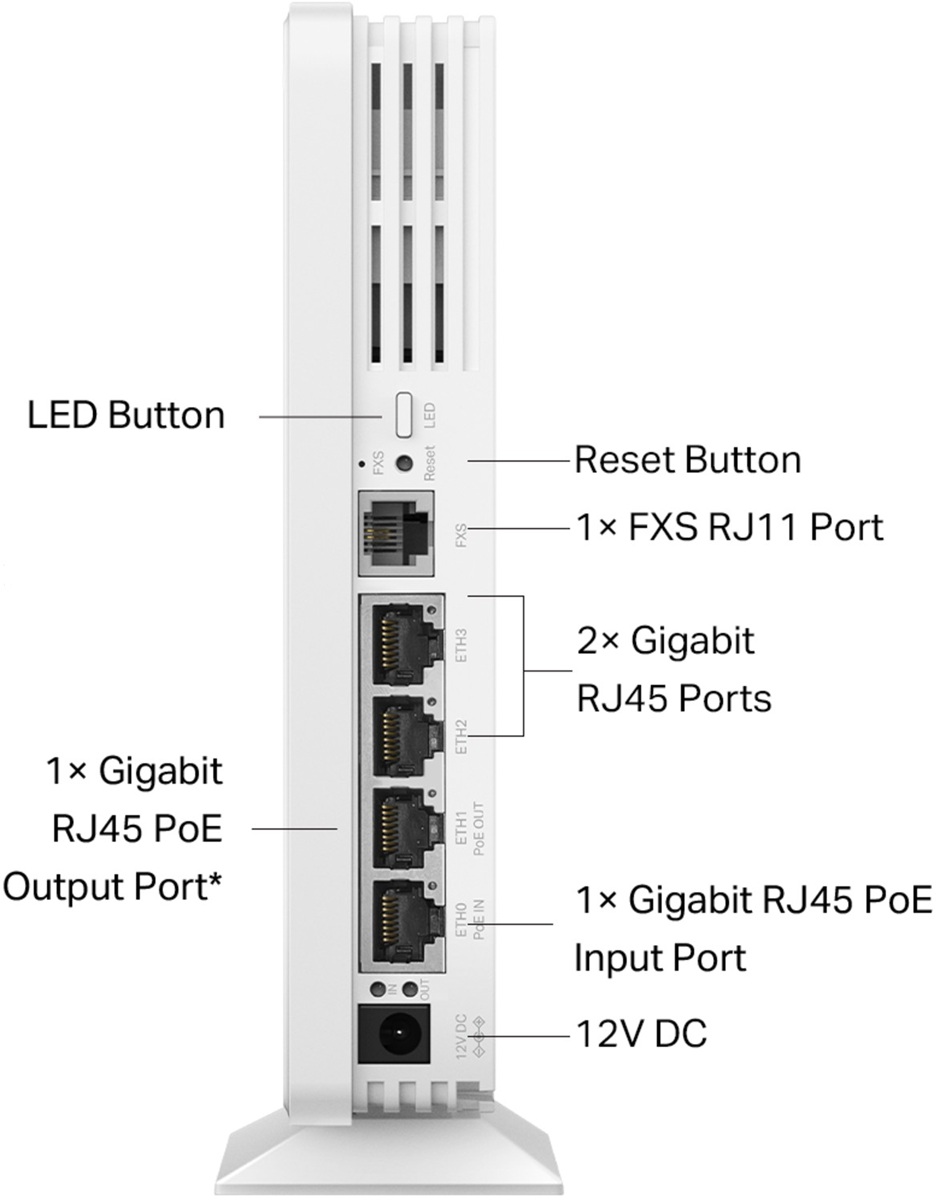

LAN and PoE

The AP features four 10/100/1000 Mbps LAN ports, with the first port supporting PoE IN and the second port supporting PoE OUT. It can be powered via 802.3af, but for PoE OUT to function correctly, the device must be powered with 802.3at/bt. The device also includes one FXS RJ11 port.

Key Features

• Centralized management of EAP units via Omada SDN controller
• 4× 10/100/1000 Mbps Ethernet ports + 1x FXS port
• Fast Wi-Fi - 574 Mbps (2.4 GHz), 2402 Mbps (5 GHz)
• Supports PoE Out when connected with PoE In (802.3at/bt PoE)
• The device can be easily mounted on the wall
• Supports features like Airtime fairness, Band steering, and Beamforming

Package Contents

• Device
• Wall mount accessories
• Power adapter (12V / 1.5A)

Свали

https://download.discomp.cz/TP-LINK/Datasheets/Datasheet_EAP650-Desktop%20V1.pdf

Datasheet

https://download.discomp.cz/TP-LINK/QSG/7106511611_EAP650-Desktop_IG_V1.pdf

Installation Guide
