TP-Link SG3428XMPP, Omada managed switch L2+, PoE++, 500W

TP-Link SG3428XMPP, Omada managed switch L2+, PoE++, 500W
Вашата цена с ДДС (20.0%)
3,452.87 RON
✅ В наличност < 10 Бр.
Delivery Планирана Дата Доставка на Куриер до Вас 04-12-2024
TP-Link
Производител
TP-Link
Продуктов номер
SG3428XMPP
Продуктов Код
RL027.823
Гаранция
60 месеца

Имате въпрос?
TP-Link TL-SM5310-T, 10G Metallic module, SFP+
TP-Link TL-SM5310-T, 10G Metallic module, SFP+TL-SM5310-T
218.89 RON без ДДС
Добави в кошница
Masterlan patch cable UTP, Cat5e, 1m, yellow
Masterlan patch cable UTP, Cat5e, 1m, yellowPCU5E-1YW-MS
1.82 RON без ДДС
Добави в кошница
Masterlan comfort patch cable UTP, Cat5e, 5m, gray
Masterlan comfort patch cable UTP, Cat5e, 5m, grayPCU5E-5-MSC
10.25 RON без ДДС
Добави в кошница
MaxLink 10G SFP+ optical module, MM, 850nm, 300m, 2x LC connector, DDM
MaxLink 10G SFP+ optical module, MM, 850nm, 300m, 2x LC connector, DDMML-S+85D-03
31.80 RON без ДДС
Добави в кошница
MaxLink 10G SFP+ optical module, SM, 1310nm, 10km, 2x LC connector, DDM
MaxLink 10G SFP+ optical module, SM, 1310nm, 10km, 2x LC connector, DDMML-S+31D-10
50.04 RON без ДДС
Добави в кошница
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDM
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDMML-S+2733-10
66.90 RON без ДДС
Добави в кошница
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDM
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDMML-S+3327-10
66.90 RON без ДДС
Добави в кошница

Описание на продукт

Това е автоматичен превод. Оригиналния текст може да видите тук

Software Defined Networking (SDN) with Cloud Access

This one superb PoE switch is prepared for you with budget up to 500W, PoE++ support and 4 SFP+ optical slots.

Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

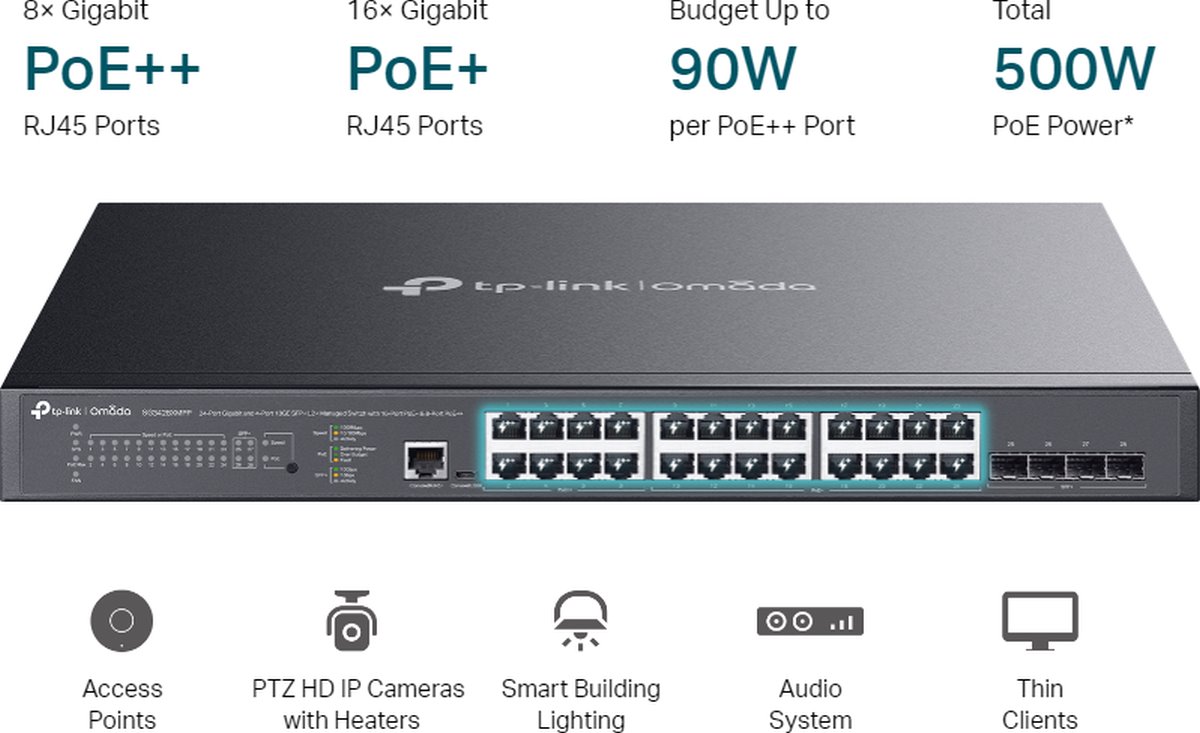

TP-Link SG3428XMPP

Key features

  • 4× 10 Gbps SFP+ slots
  • 8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
  • 16× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
  • Up to 500 W total PoE budget
  • Centralized cloud management via the web or the Omada app
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing, VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
  • ERPS supports rapid protection and recovery in a ring topology
  • Durable metal casing and rack-mountable design

Package contents

  • Device
  • Power cord
  • Quick Installation Guide
  • Rackmount kit
  • Rubber feet

Свали

https://download.discomp.cz/TP-LINK/Datasheets/SG3428XMPP_datasheet.pdf
Свали Datasheet
https://download.discomp.cz/TP-LINK/Userguides/SG3428XMPP_IG.pdf
Свали Installation Guide
https://download.discomp.cz/TP-LINK/Userguides/SG3428XMPP_UG.pdf
Свали User Guide

Технически параметри

LAN ports
Design
Desktop, Rackmount
Switchning capacity [Gbps]
128
MAC address table
16000
Jumbo frame [Bytes]
9000
Packet forwarding rate [Mpps]
95,2
Web management
Yes
Management
Web management, SSH, Telnet, Omada controller
Features
VLAN, QoS, DHCP snooping, L2+
Power type
Mains power (230V)
Fans
Yes
LAN ports
24
LAN speed
(24) 10/100/1000Mbps
Max. LAN ports speed
1G
PoE type
PoE-Out (only)
SFP+ cages
4
Optical interfaces
(4) 10Gbps
PoE-Out standards
802.3af, 802.3at, 802.3bt
PoE Out ports
24
PoE budget [W]
500
Max. power consumption [W]
606
Serial port
RJ45, micro USB
Chassis design
Metal
Power via connector/terminal
100-240 V AC~50/60 Hz
Buttons
Status (Speed / PoE)
Operating temperature [°C]
0 up to 40
Width [mm]
440
Height [mm]
44
Depth [mm]
330
Default IP address
192.168.0.1
Default login and password
admin / admin
