TP-Link SG6654X Omada 48-Port Gigabit Stackable L3 Managed Switch
Вашата цена с ДДС (20.0%)
11,999.83 RON
Поръчан за склад
Без потвърдена дата на доставка
48.66 RON без ДДС
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDMML-S+2733-10
65.03 RON без ДДС
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDMML-S+3327-10
65.03 RON без ДДС
15561.74 RON без ДДС
Описание на продукт
Това е автоматичен превод. Оригиналния текст може да видите тукOmada SG6654X, a L3 managed switch, offers L3 routing, swift 10 Gbps wired speed, stacking, and redundant power supplies, catering to convergence layer demands. It comes with 48× gigabit RJ45 ports, 6× 10 Gbps SFP+ slots, and physical stacking. Integrated with robust security and comprehensive management features, this switch ensures reliable performance for SMB, enterprise, and ISP networks.
Key features
- 48× Gigabit RJ45 ports and 6× 10 Gbps SFP+ slots
- 216 Gbps switching capacity per unit
- Physical Stacking for built-in redundancy and performance
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X

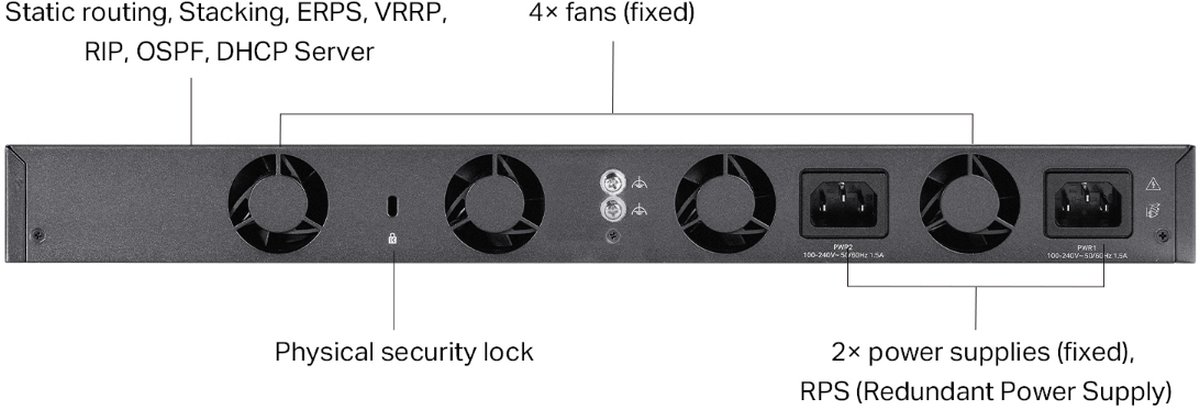

- Highly Available with two internal fixed power supplies, VRRP, and ERPS
- Centralized cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
Package contents
- Device
- (2) Power cords
- RJ45 console cable
- Quick Installation Guide
- Rackmount Kit
- Rubber feet
Свали
Технически параметри
LAN ports
Design
Rackmount
Switchning capacity [Gbps]
216
MAC address table
32000
Jumbo frame [Bytes]
9000
Packet forwarding rate [Mpps]
160,7
Web management
Yes
Management
Omada controller, SSH, Telnet, Web management
Features
DHCP snooping, L3, QoS, Physical stacking, VLAN
Power type
Mains power (230V)
Fans
(4) 40 x 40 mm
LAN ports
48
LAN speed
(48) 10/100/1000Mbps
Max. LAN ports speed
1G
Management LAN
(1) 10/100Mbps
SFP+ cages
6 (1G/10G support)
Optical interfaces
(6) 10Gbps
Redundant power supply
Yes
Max. power consumption [W]
40
Serial port
USB-C, RJ45
Chassis design
Metal
USB ports 2.0
2
Power via connector/terminal
230V AC
Buttons
Switch mode
Operating temperature [°C]
-5 up to 50
Width [mm]
440
Height [mm]
44
Depth [mm]
380
Default IP address
192.168.0.1
Default login and password
admin / admin
