RF elements Symmetrical Horn Sector antenna with TwistPort, 5/6GHz, 18 dBi, 30°
Вашата цена с ДДС (20.0%)
1,194.14 RON
✅ В наличност 90+ Бр.
Планирана Дата Доставка на Куриер до Вас 08-01-2025
39.54 RON без ДДС
Описание на продукт
Това е автоматичен превод. Оригиналния текст може да видите тук30° Symmetrical Horn Antennas have a symmetrical beam pattern with depressed sidelobes. They offer excellent noise rejection and supreme scalability options. They are perfect for high-density AP clusters and dense co-location deployments.
Key features
- Wideband performance covering 5 & 6 GHz unlicensed spectrum bands.
- Industry-changing TwistPort™ waveguide connector. Connect directly to waveguide ported radios or use TP Adaptor to common coaxial connectors.
Industry leading design
- Built of high grade aluminum for extreme outdoor resistance including harsh salt water environments.
- Extremely lightweigth for low tower load.
- Compact for low wind loading.
- UBR mounting bracket with stainless steel hardware with anti-seize coating.
- Industry leading ergonomics with integrated handle for easy deployment.
Свали
Технически параметри
LAN ports
Designed for mast diameter [mm]
40 up to 80
Wind load [km/h]
160
Protection class
IP65
MIMO, SISO
2 x 2
Polarization
VH
F/B ratio [dB]
30
Wireless frequency
5 GHz, 6 GHz
Elevation beam width (-6dB) [°]
30
Azimuth beam width (-6dB) [°]
30
Antenna type
Sector
Purpose
Outdoor
Antenna gain [dBi]
18
Material
Aluminum, Stainless steel, UV stabilized ABS plastic
Operating temperature [°C]
-35 up to 60
Weight [kg]
2,3

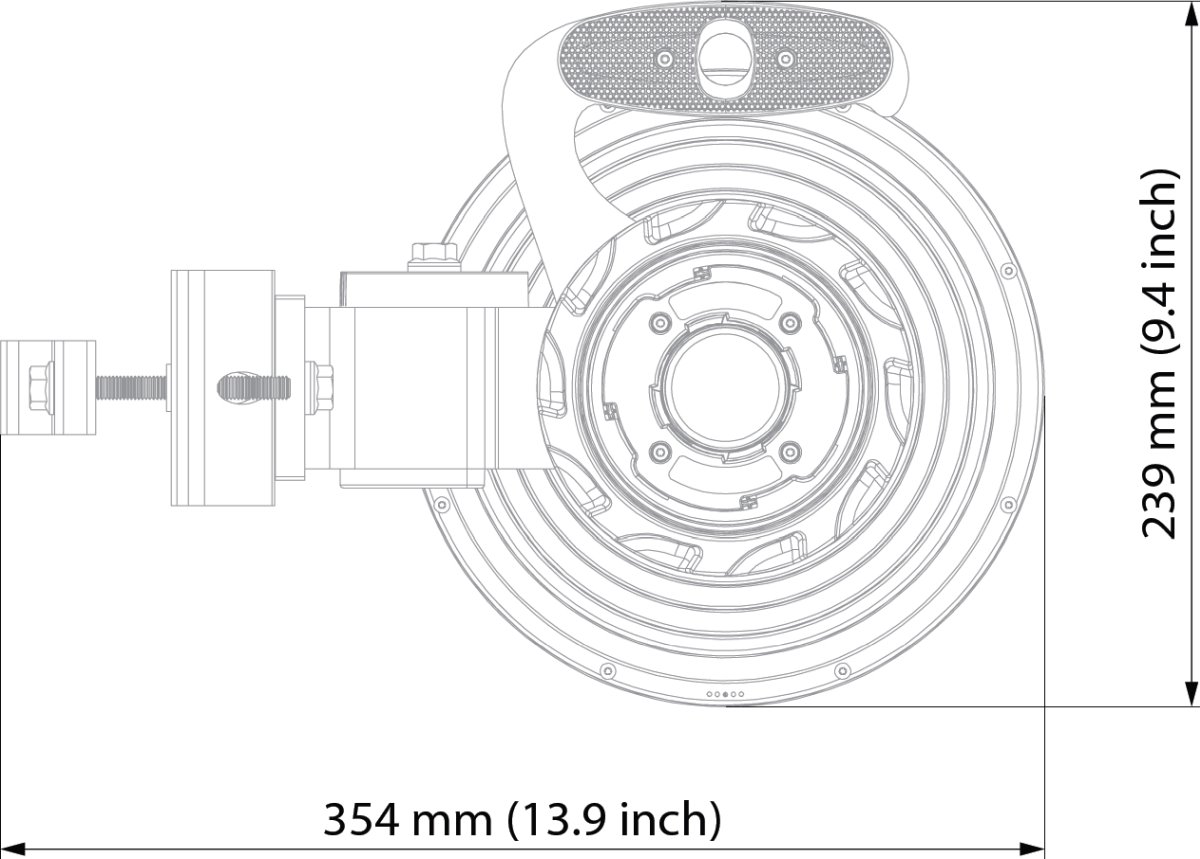

Width [mm]
216
Height [mm]
239
Depth [mm]
246
