Teltonika TRM200 - 4G modem

Teltonika TRM200 - 4G modem Нов
Вашата цена с ДДС (20.0%)
386.78 RON
Поръчан за склад
Delivery Планирана Дата Доставка на Куриер до Вас 12-02-2025
Teltonika
Производител
Продуктов номер
TRM200000000
Продуктов Код
RL028.804
Гаранция
24 месеца

Описание на продукт

Това е автоматичен превод. Оригиналния текст може да видите тук

The TRM200 is an industrial-grade LTE Cat 4 modem, providing reliable 4G connectivity with full backward compatibility for 3G and 2G networks, ensuring seamless operation across diverse environments. Equipped with a micro USB port and an external antenna, this rugged modem is a cost-effective solution for upgrading existing industrial equipment with LTE capabilities.

Teltonika TRM200

Key features

  • CONNECTIVITY - 4G Cat 4, 3G, 2G

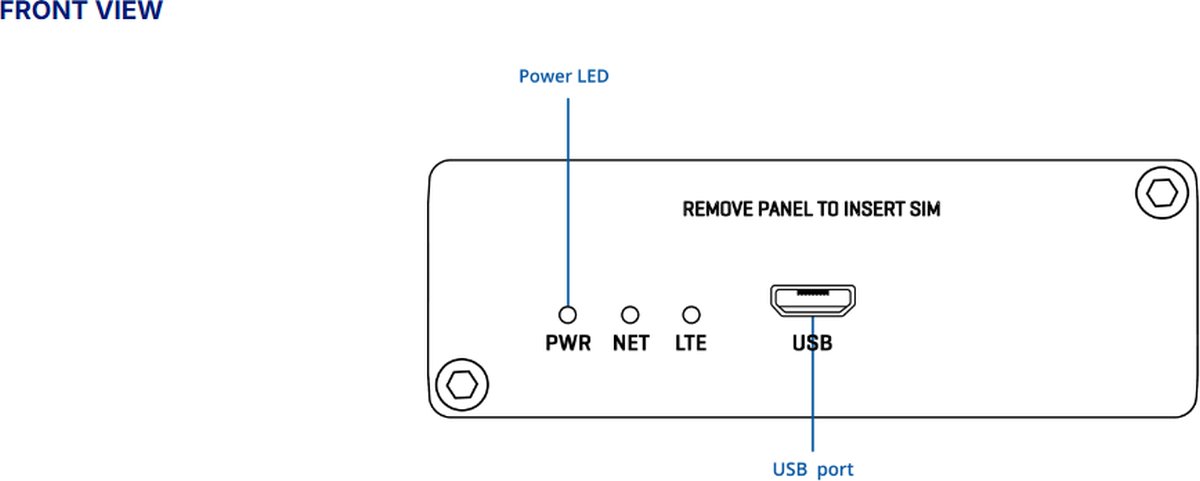

  • MICRO USB - For powering and data connectivity
  • EXTERNAL ANTENNA - For enhanced network reliability
  • COMPACT & DURABLE - Small size, easy installation

Package contents

  • TRM200
  • 1x Mobile antenna (swivel, SMA male)
  • Micro-USB cable (0.8 m)
  • 1x hex key
  • QSG (Quick Start Guide)
  • Packaging box

Свали

https://download.discomp.cz/Teltonika/Datasheets/trm200-datasheet-v10.pdf
Свали Datasheet
https://wiki.teltonika-networks.com/view/TRM200_First_Start
Свали Link to Quick Start Guide
https://wiki.teltonika-networks.com/view/TRM200_Manual
Свали Link to User Manual

Технически параметри

LAN ports
Power jack
Yes
Protection class
IP30
RF connectors
(1) SMA female
Material
Aluminum
4G/LTE bands support
(1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (5) 850 MHz, (28) 700 MHz
LED indication
Yes
Max. power consumption [W]
3,2
Power via connector/terminal
5V DC
Operating temperature [°C]
-40 up to 75
Weight [g]
274
Width [mm]
75
Height [mm]
25
Depth [mm]
65
SIM slots quantity
1
SIM slot
Yes
